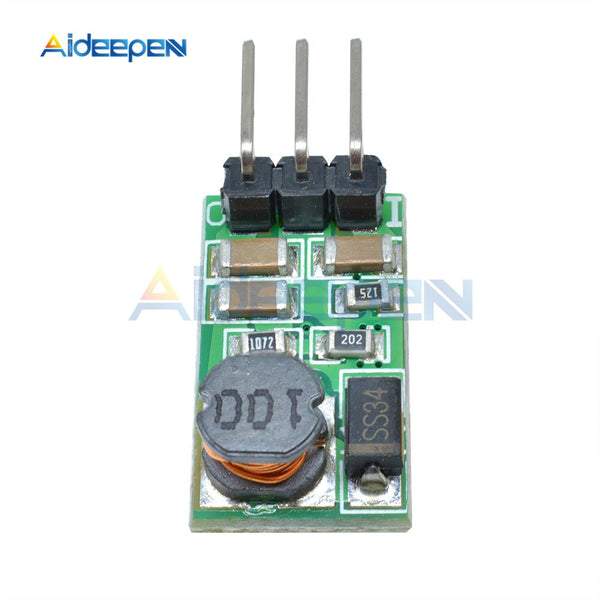

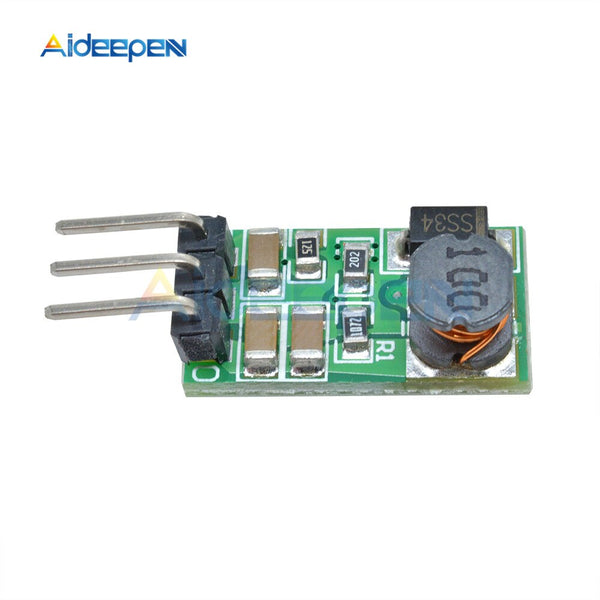

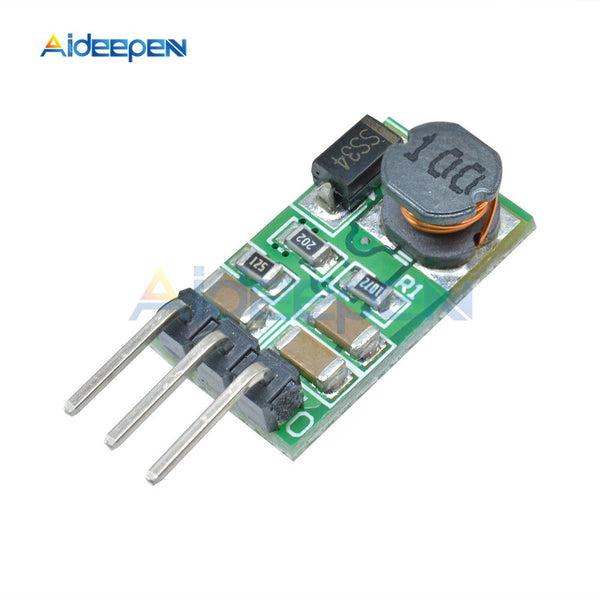

Description:
Input voltage 6.5~40V,output 3.3V/5V
Maximum output current 1A
DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 76-90% .
Quiescent current: about 1.5MA
Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.
2.54mm pin pitch, Arduiuo UNO MEGA2560 Breadboard MCU Development Board friendly
Excluding Pin Size 18.3mm x 10.2mm x 6.7mm( small)
Weight : about 1.3g(Very light)
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1. Input voltage can not be greater than the maximum input range
2. Output power can not be greater than the maximum load for a long time
3. Input power must be greater than the output power, because the power consumption of the module itself
Applications:
3.3V MCU ARM CPU FPGA/CPLD
12V 5V TO 3.3V lithium battery-powered systems
3.3V Motor
WIFI esp8266 Module
CCTV camera
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
replace AMS1117-3.3 LM1117-3.3 1117 LDO
Package Include:
1 x 1A DC 6.5-40V to 3.3V 5V DC-DC Step-Down Buck Converter for Arduino ESP8266 RF BMS Power Module Input 6.5-40V Output 3.3V 5V
