Description:
1. the whole network volume of the smallest power module
2. 1.7x2.2CM, less than a dollar coin
3. the application areas: DIY mobile power, monitoring power, children's car power, camera power, automotive power, communications equipment, power, a variety of weight and weight requirements of the occasion (such as aviation models).
4. the product attributes:
Model / Name: Ultra-small DC-DC buck module
Input voltage: 7V - 28V
The output voltage: 5V (accuracy 1%)
Output current: 3A (maximum), long working current of about 1.5A
Conversion efficiency: 96% (highest)
Output ripple: <30mV
Switching frequency: 1.5MHz (highest), typical 1MHz
Operating temperature: -45 degree Celsius to + 85 degree Celsius

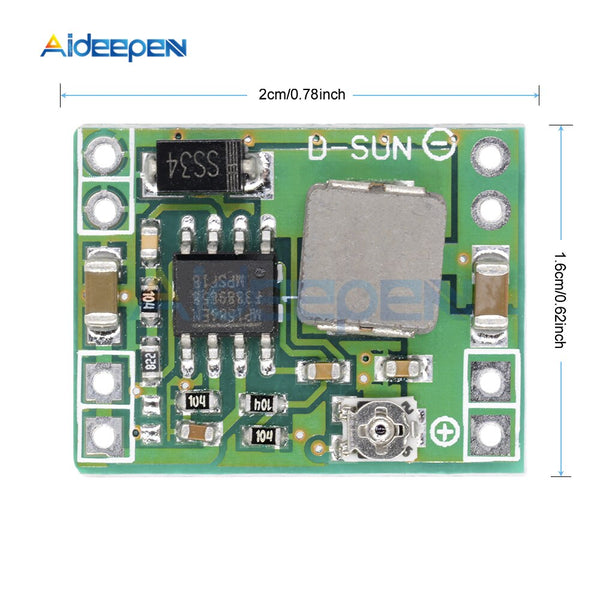

Size: 22mm * 17mm * 4mm (L * W * H)
Package included:
10*Mini Step Down Module DC-DC Converter
