100W 120W 150W DC-DC Boost Converter Step Up Power Supply Module 10-32V To 12-97V Laptop Voltage Charge Board For Arduino
Description:
100W
Module Properties: non-isolated step-up module (BOOST)
120W
With airfoil radiator, the cooling effect is improved significantly, greater output power(plus fan the max power can up to 130W).
Low output ripple, when output in 48V,the output ripple can control in about 1%.
Input voltage:10-34V, Output voltage default setting is about 48V.
Specifications:
Module Properties: Non-isolated step-up module (BOOST) Input Voltage: DC 10-32 V
Output Voltage: DC 35-60 V (adjustable)
Maximum Input Current: 16 A (Higher than 10A need cooling)
Maximum output Current: 5 A
Power: 80W(MAX,Natural cooling),Strengthen cooling 120W(MAX,Actual power)
Efficiency: typical 90 %(For reference)
Output ripple: 2%(max) 20M bandwidth
Operating Temperature: Industrial (-40 to +85 ),( environmental temperature, more than 40 degrees, please reduce power to use, or enhance cooling)
Full Load temperature rise: 45
No-load Current: Typical 25mA
Switching Frequency: 100KHz
Load Regulation: ± 0.5%
Voltage Regulation rate: ± 0.5%
Dynamic response speed: 5% 200uS
Short-circuit Protection : None (Please install fuses or protection circuits at input port if you need.)
Input Reverse Protection: None (Please Series diode at the input port.)
Net weight:67g
Size: 65(L) x 47(W) x 27(H) mm
Application:
Adjustable Output Car Power Boost Charger
Power for your electronic equipment
Solar battery charger for electric vehicles

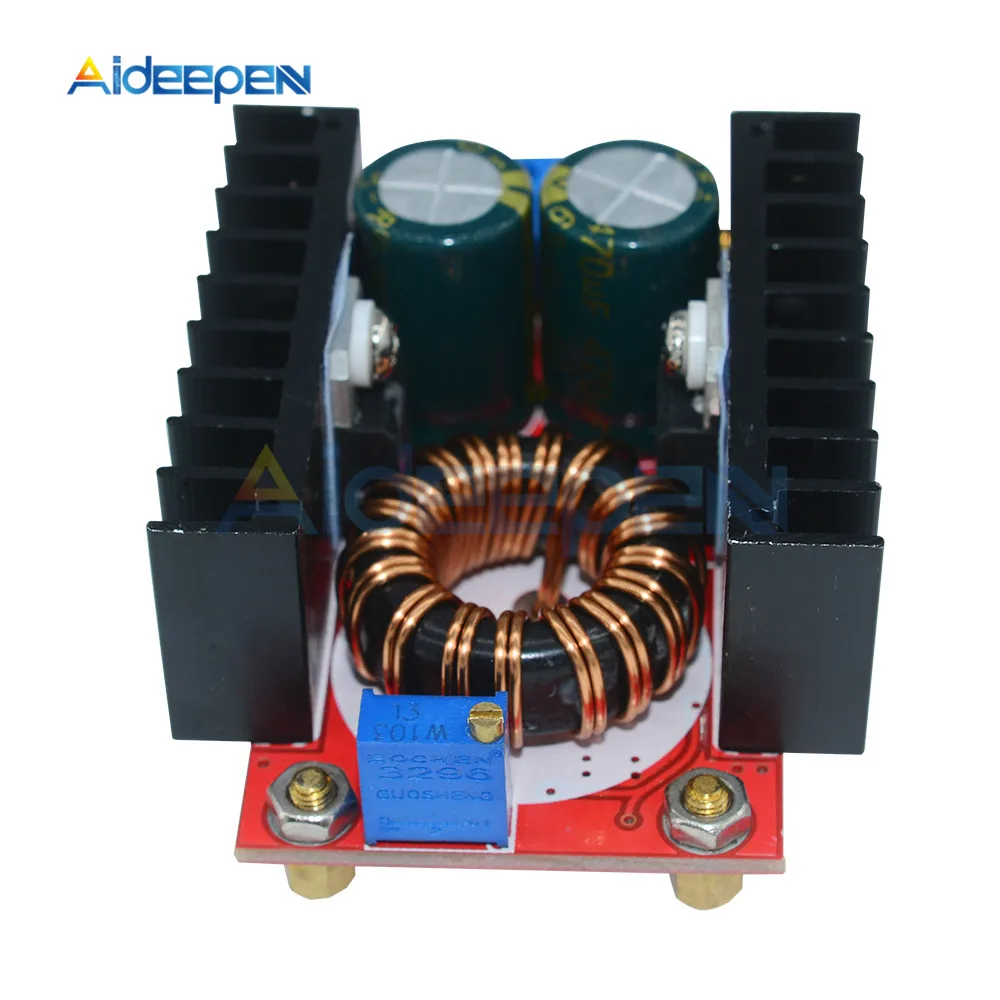

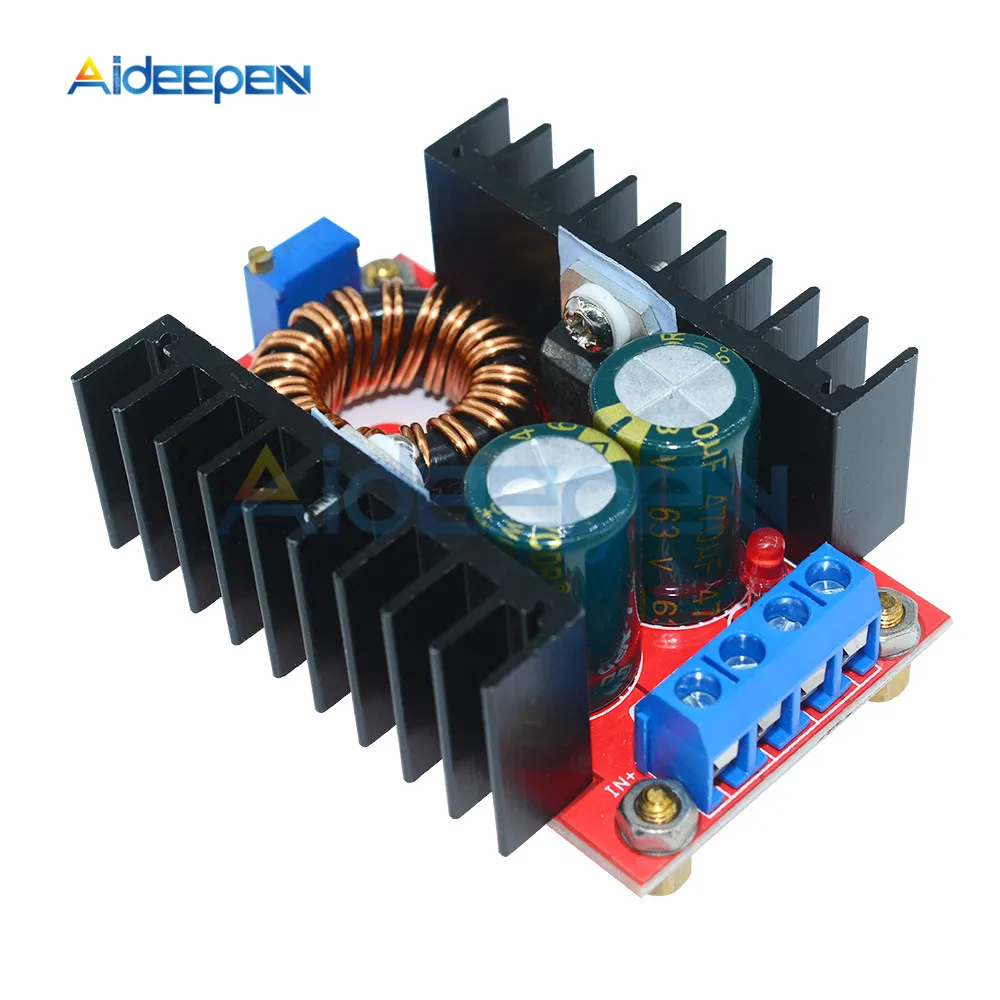

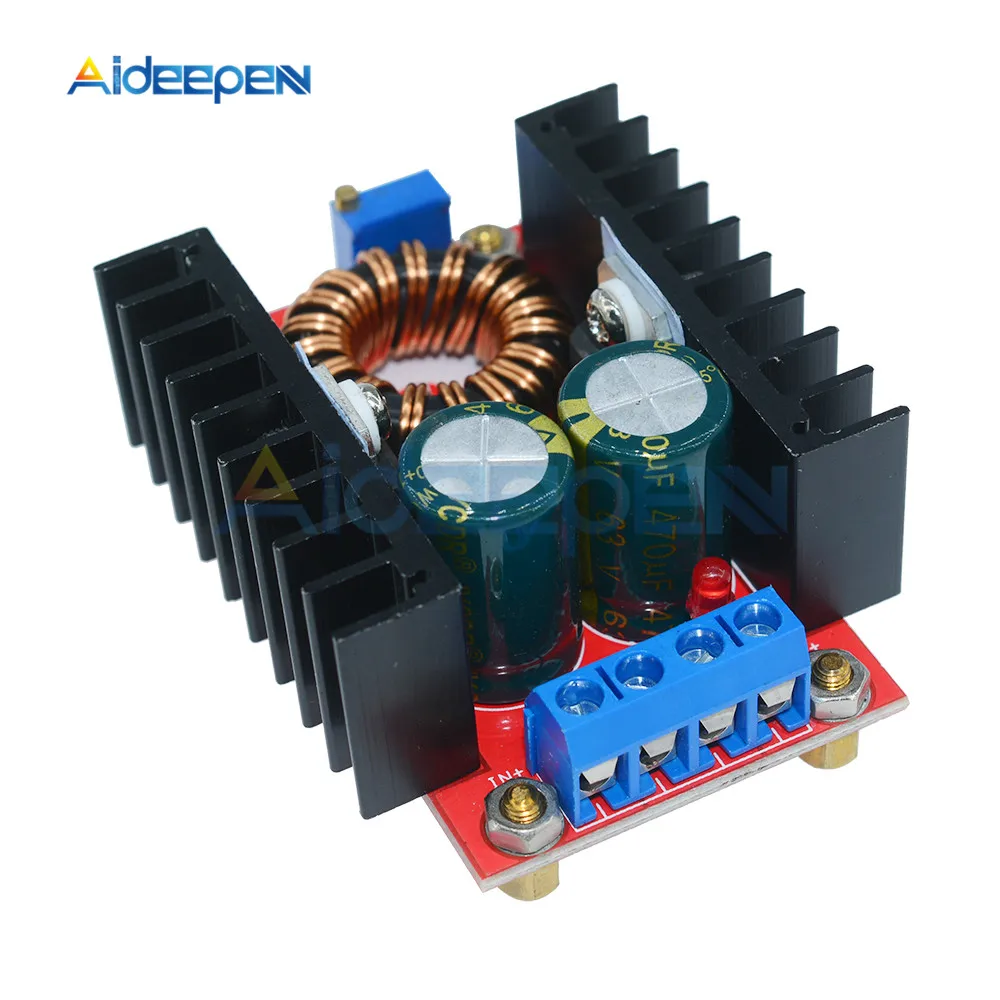

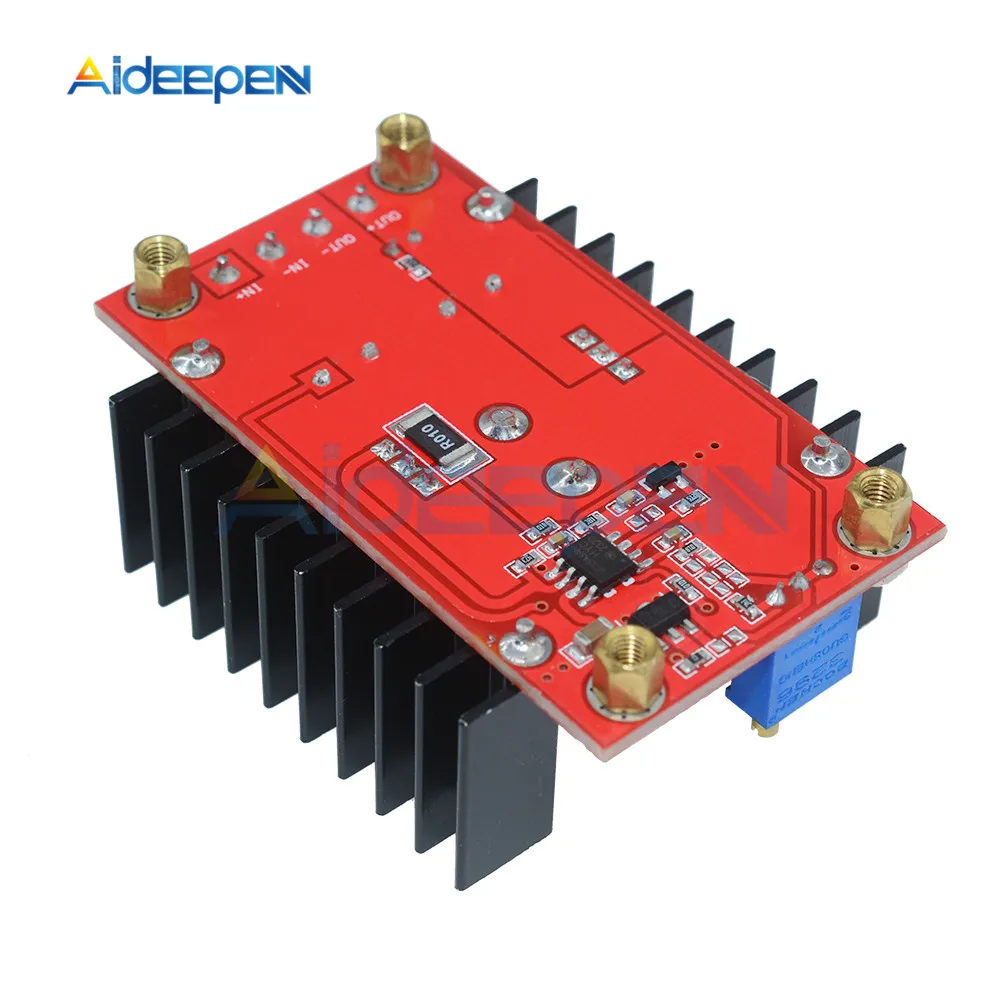

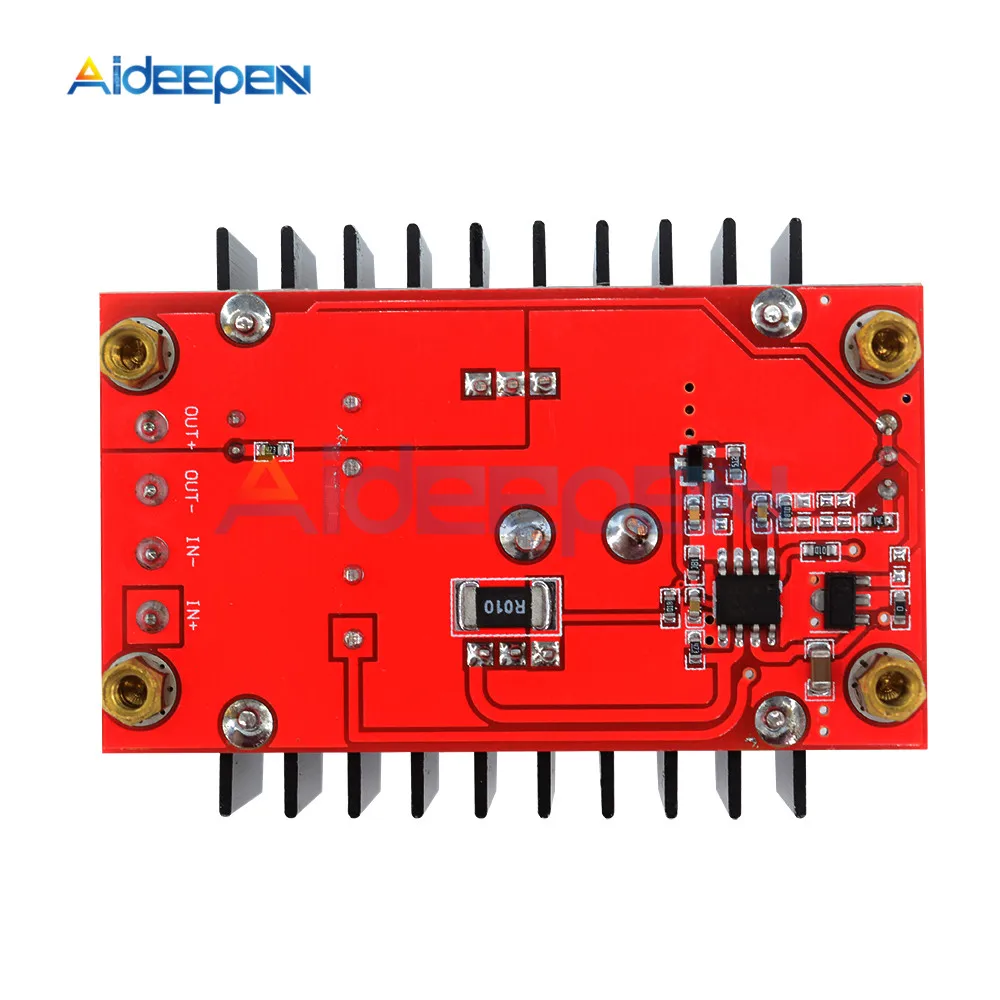

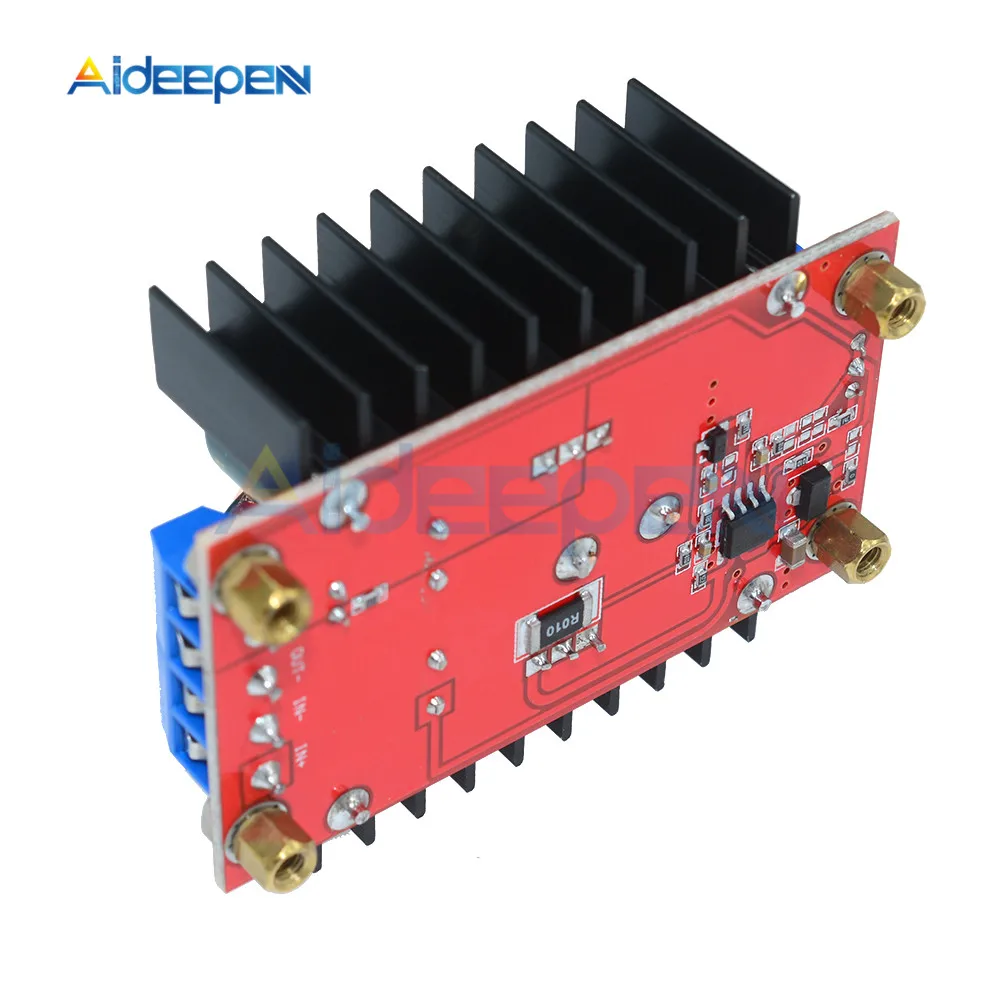

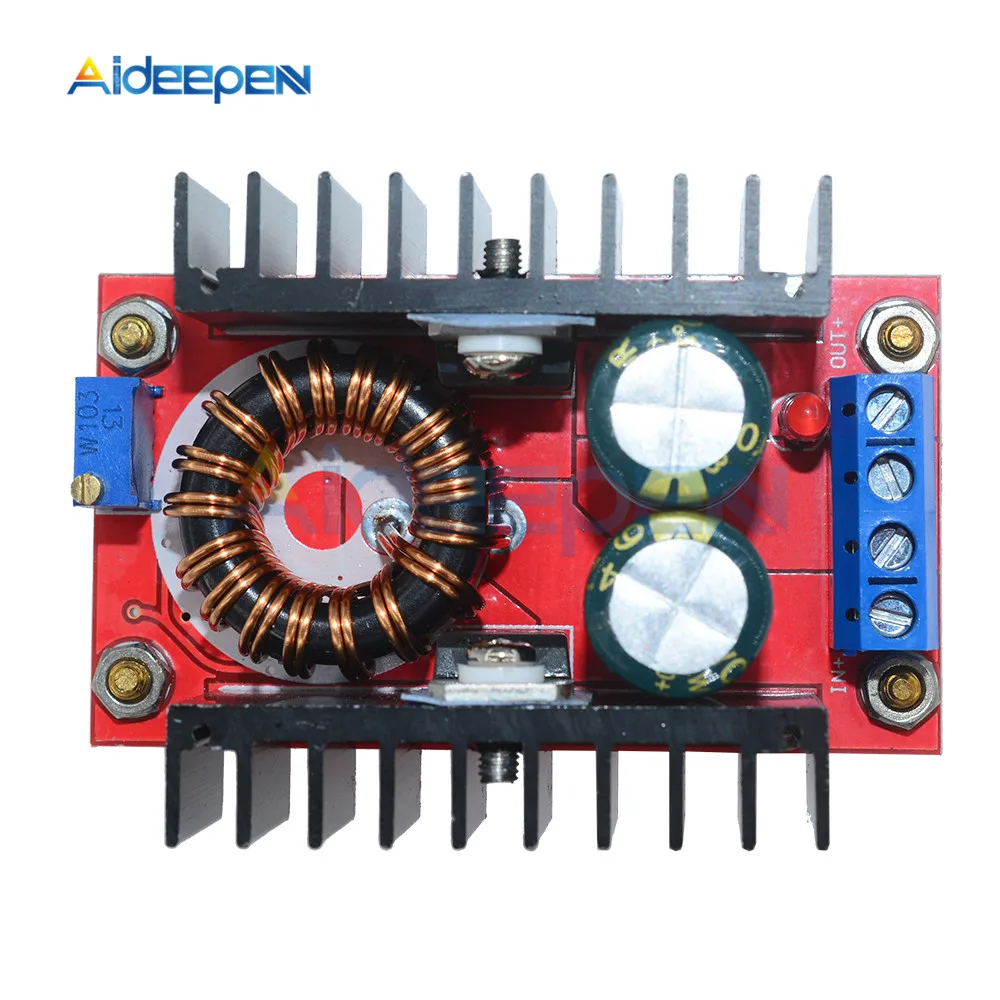

150W
- Input voltage :10-32V
- Output voltage: 12-35V (adjustable)
- Output Current: 10A (MAX)
- Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
- Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
- Easy to drive 65W 90W dual-core notebook.
- Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c
- Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
- Output Ripple: 2% (MAX) 20M-bandwidth
- Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
- Full load temperature rise: 45°c
- No-load current: 25mA typical
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
- Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Some Applications:
DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
- Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
- Boost charger. You can use the 12V power supply to charge battery more than 12V, for example, 24V battery
-
Package included:
1 x DC-DC Boost Module
