0.5ML Silver Conductive Wire Glue Adhesive Paste Apply to PCB Electronics Repair


Regular price $5.99

Tax included.
Is mainly used to fix some inconvenient place for welding wire for repairing the keyboard or some soft wireare very small, and so on.
1) has excellent electromagnetic shielding effectiveness.
2) on ABS, PC, ABS/PC and other plastic substrate adhesion excellent.
3) 100% sterling silver powder medium, with excellent electrical conductivity.
4) excellent abrasion resistance..
5) excellent wet fastness.
6) dry excellent.
7) the film performance, no shedding phenomenon, hard coating durability.
8) precipitation difficult layered products, strong operations.

Length: Approx. 15.5 cm (6.1")
Weight: 9g
Quantity: 0.50 ML

How to use:
1. Apply the silver glue / paste in the place you want.
2. After the desired tracks get covered, Please allow one hour for drying.
3. If you want it drying rapidly, blow it with a hair dryer for 5 - 10 minutes will be OK.
Technical data
Solid powder 60-80%
The specific gravity of 25 ℃ 1.46-1.48g/cm3
The resistance is lower than 0.02 ohm film thickness of 12 microns
Viscosity > 20000CPS
The shielding effect > 80dB
Recommended dry film thickness of 12-16 microns
Recommended thinners days that water ethanol
Conductive paint diluent dilution ratio: =1:0.7-0.8 (weight ratio)
Humidity environmental test at 85 ℃ /85% relative humidity resistance a constant value of 7 days
Drying conditions of 60 ℃ for 20 minutes (you can use the hair dryer or hot air gun faster cure)

Package Contents:

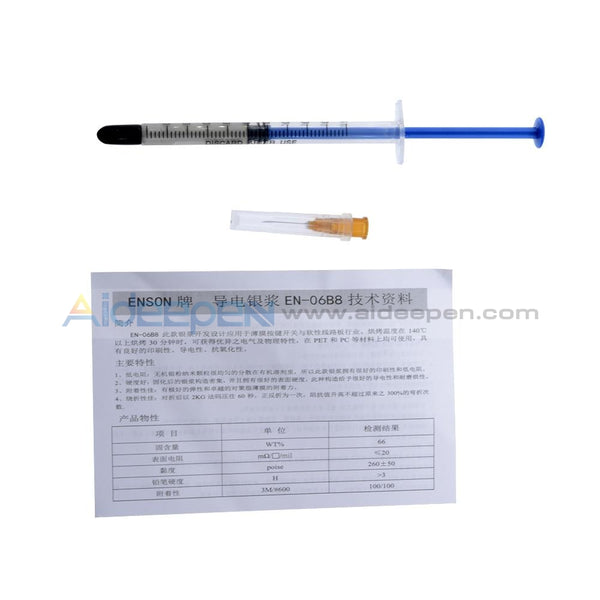

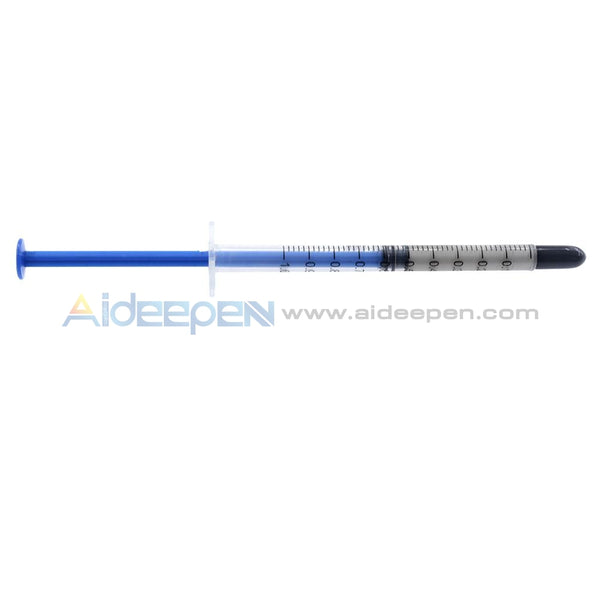

1 x Silver Conductive Paste Syringe(0.5ML)
