MT3608 DC DC Adjustable Boost Module 2A Boost Plate Step Up Module with MICRO USB Power Supply Module 2V 24V to 5V 9V 12V 28V

14:350686

Sale price $0.99 Regular price $1.48

Tax included.

Description:

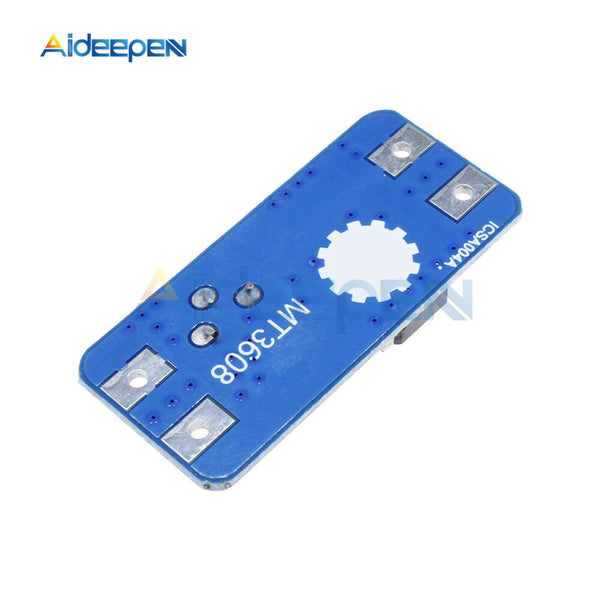

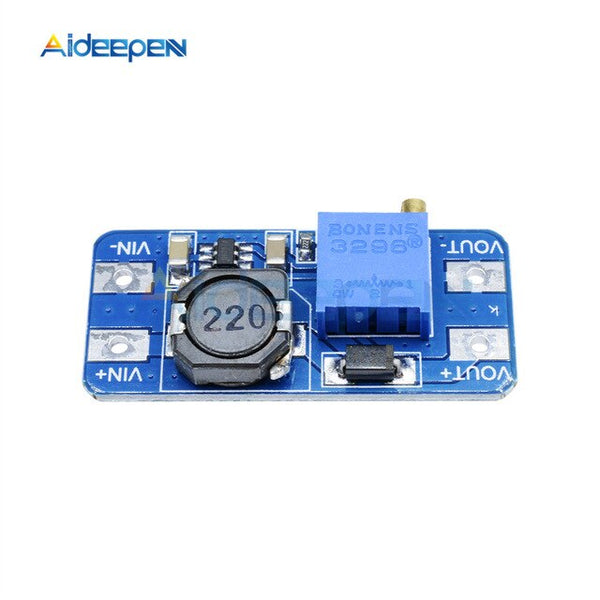

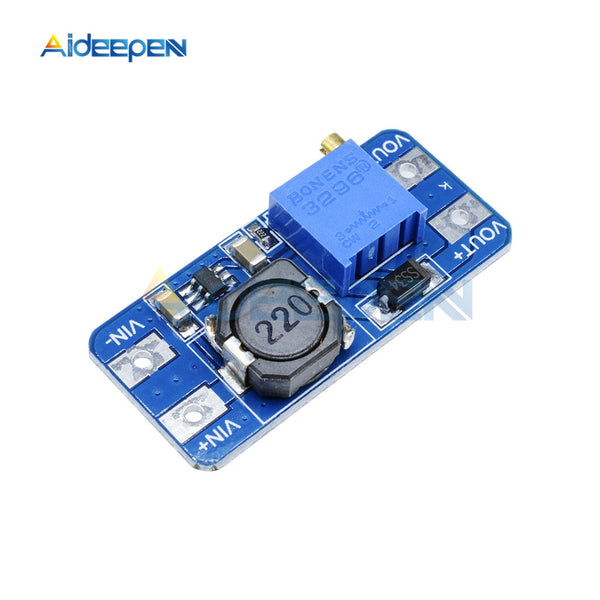

MT3608

1.Electrical characteristics
1). The maximum output current: 2 a
2). The input voltage: 2 v ~ 24 v
3). The maximum output voltage: 28 v
4). Efficiency: >93%
2.Mechanical properties
1). product size: 36 mm * 17 mm * 14 mm
3.Method of use
The module of the IN+ and - after 2~24v, IN adjusting the potentiometer can adjust output voltage, output voltage is greater than the input voltage
4.Matters needing attention
1). The input voltage should not exceed the maximum input voltage
2). The peak current output current is no more than TV university

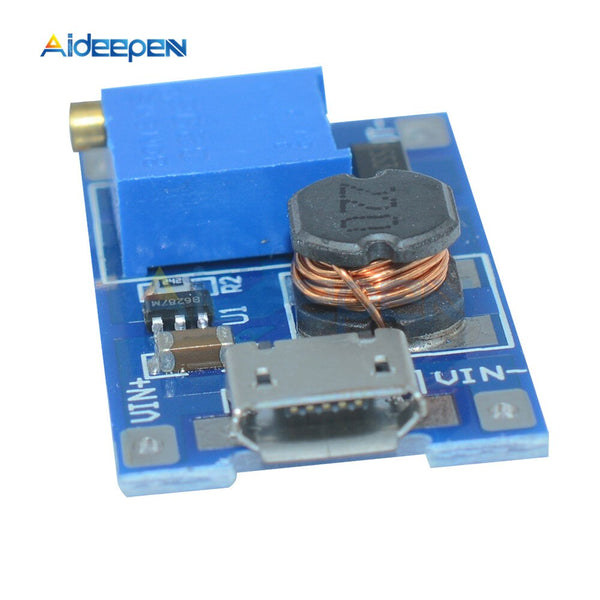

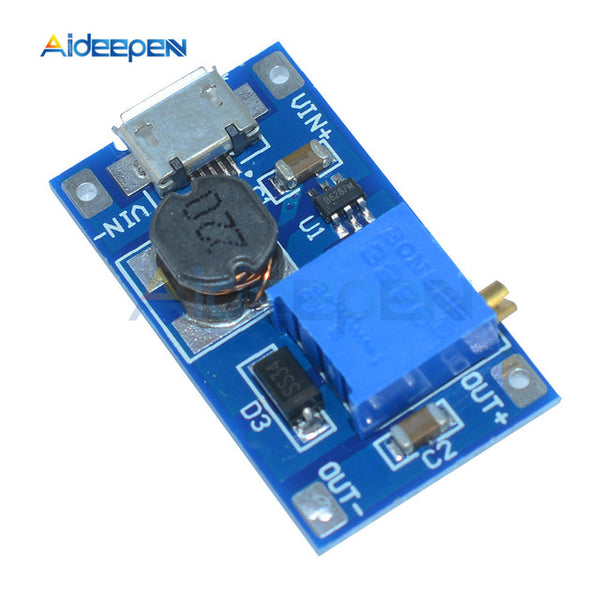

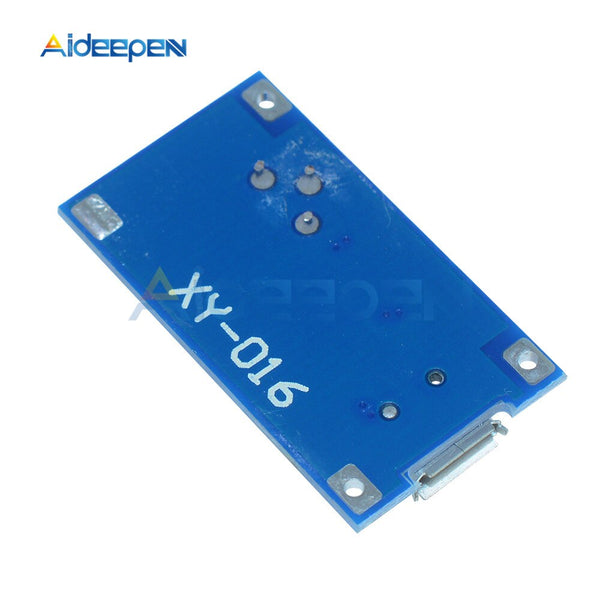

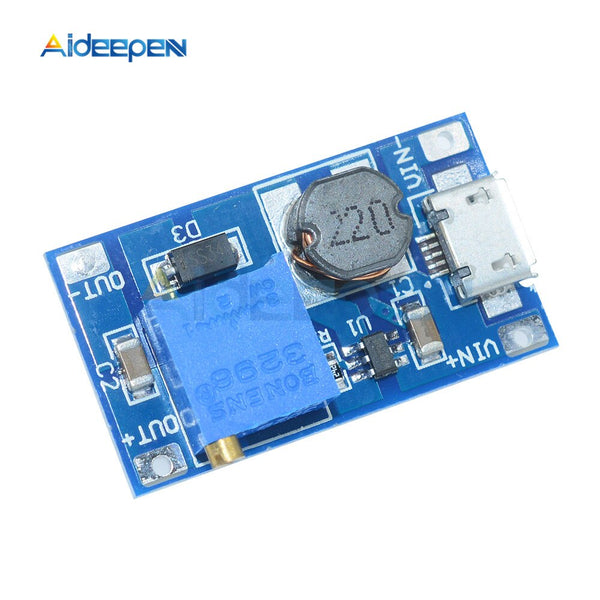

MT3608 with USB
Highlights:
The whole network smallest adjustable boost module can be easily installed in a variety of small equipment.
The module supports MicroUSB input, a USB charger or mobile power supply can easily get to it 9V, 12V, 15V, 18V, 24V, easy to use.
Wide input and output voltage, high conversion efficiency.
Property:
1) Maximum output current: 2A (recommended for use within 1A)
2) Input voltage: 2 v ~ 24 v
3) Maximum output voltage:> 28 v (recommended for use within 26V)
4) Efficiency:> 93%
5) Size: 30mm * 17mm * 14mm (L * W * H)
Precautions:
1) This module is a step-up module, the output voltage is greater than the input voltage.
2) peak current output current does not exceed 2A.
Package included:
1pcs x MT3608 DC-DC Step Up Power Apply Module Booster Power Module MAX output 28V
