Description:
This functional signal generator can test many kinds of wave forms, such as: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
Features:
Small size, powered by DC 9V, easy and portable for use.
DDS frequency range: 1Hz-65534Hz, high-speed frequency (HS) output up to 8MHz.
DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.
DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
LCD display for clear reading, intuitive touch buttons.
The power automatically restore the last used configuration.
Function:
UP output waveform select
DOWN output waveform select
LEFT output frequency -
RIGHT output frequency +
STOP / START the output stop / start
"UP" key waveforms order:
ECG = electrocardiogram wave (in the OFF state, the "left" and "right" keys to set the output frequency. Middle button start, all of the following waveform set)
Rev Sawtooth = reverse sawtooth
SawTooth = sawtooth
Triangle = triangle wave
Square = square wave
Specifications:
Display: 1602 LCD
Operating Voltage: DC 9V
DDS Frequency Range: 1Hz-65534Hz

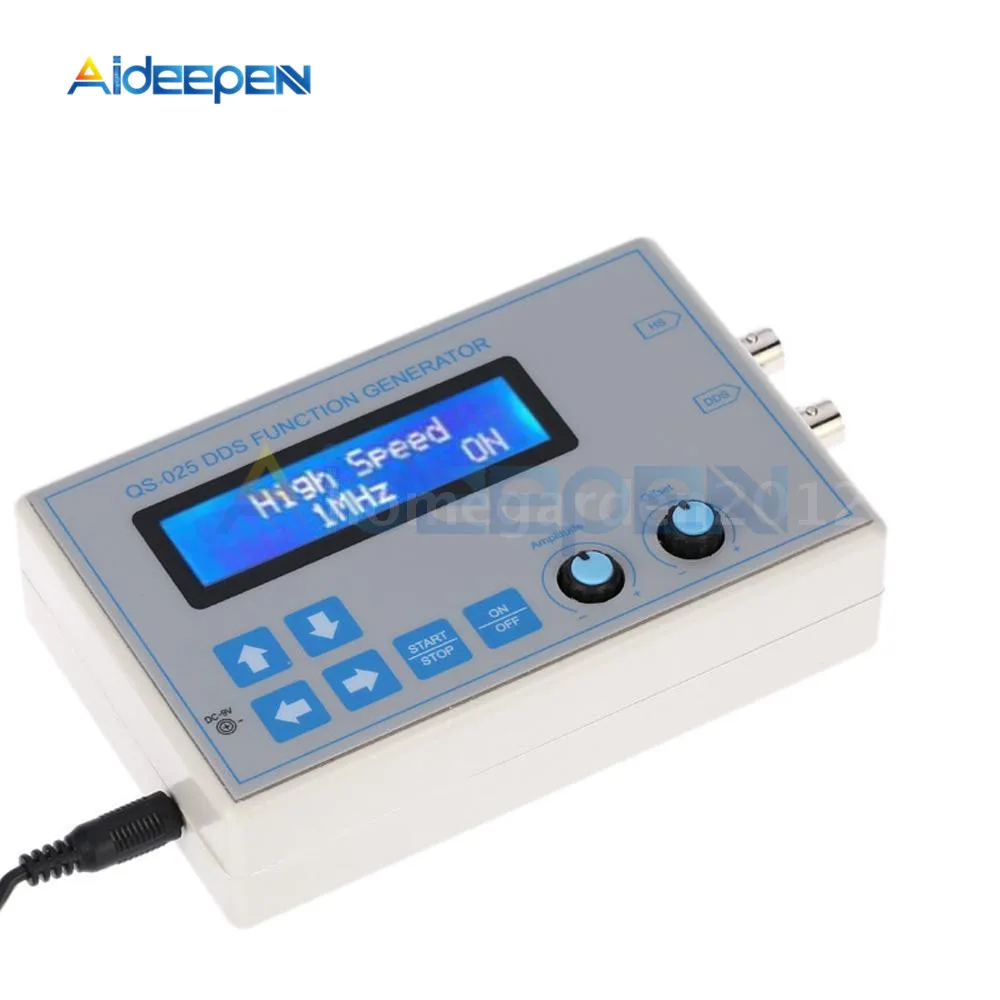

Frequency(HS) Output: up to 8MHz
Section into the Value: 1, 10 , 100, 1000, 10000 Hz
Offset: 0.5pp-5Vpp
Amplitude Amount: 0.5Vpp-14Vpp
Power Cable Length: Approx. 70cm / 27.56in
Size: 135 * 80 * 32mm / 5.3 * 3.15 * 1.26in
Weight: 176g / 6.21oz
Package Weight: 194g / 6.86oz
Package Included:

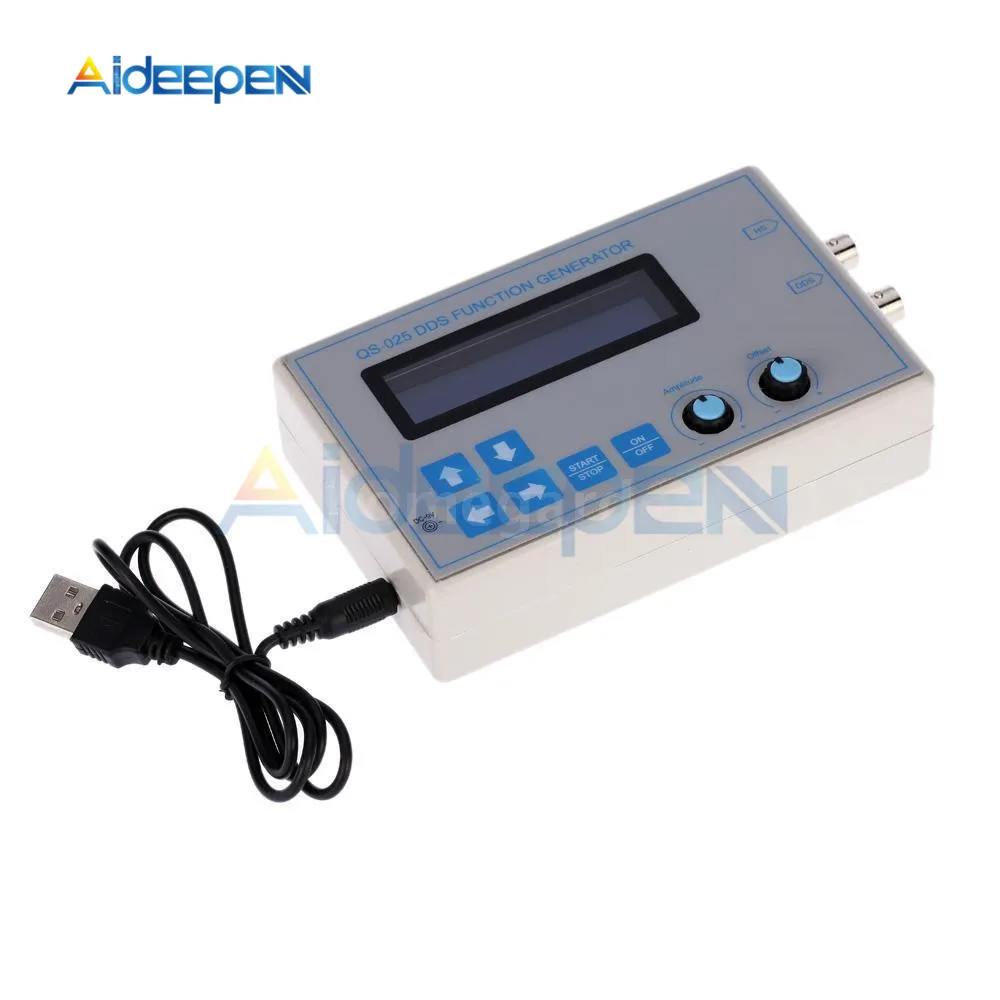

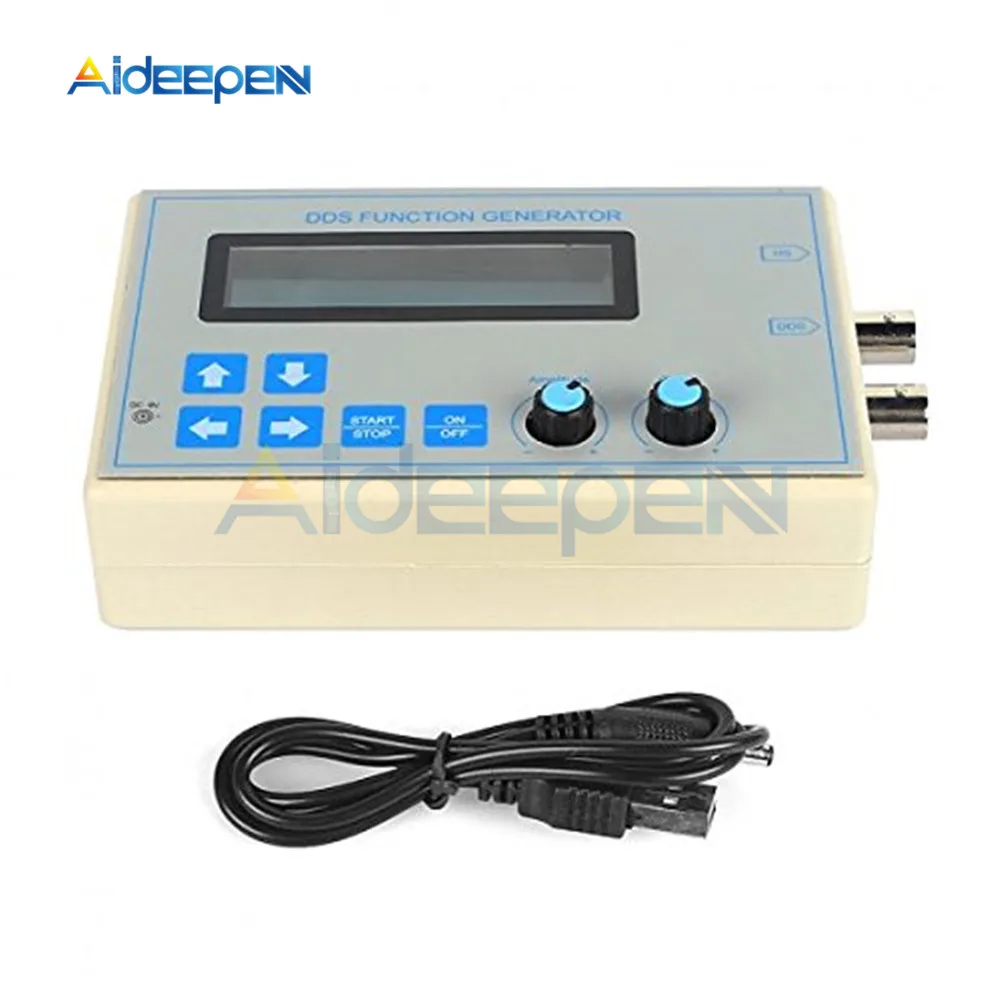

1 x 1HZ-65534Hz DDS Function Signal Generator Module Square Wave Sine Sawtooth Triangle 1602 Digital LCD Display + USB Cable DC 9V
