Description:

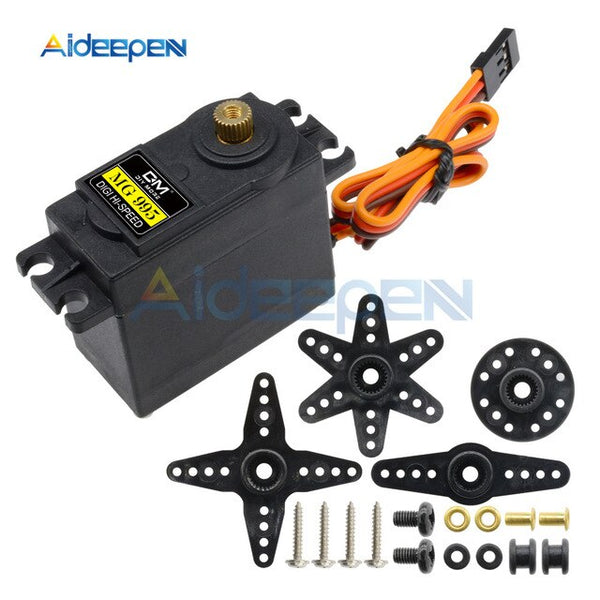

MG995:
Operating Speed : 0.17sec / 60 degrees (4.8V no load)
Operating Speed : 0.13sec / 60 degrees (6.0V no load)
Stall Torque : 9 kg-cm (180.5 oz-in) at 4.8V
Stall Torque : 12 kg-cm (208.3 oz-in) at 6V
Operation Voltage : 4.8 - 7.2Volts
Gear Type: All Metal Gears
Original box: NO
Color: Black
Connector Wire: Heavy Duty, 11.81" (300mm)
Dimension : 40mm x 19mm x 43mm
Features:
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
Stable and Shock Proof. - Coreless Motor - Metal Gear - Double Ball Bearing -
Connector Wire Length 300mm
Angle: Servo 360 degree Continuous Rotation

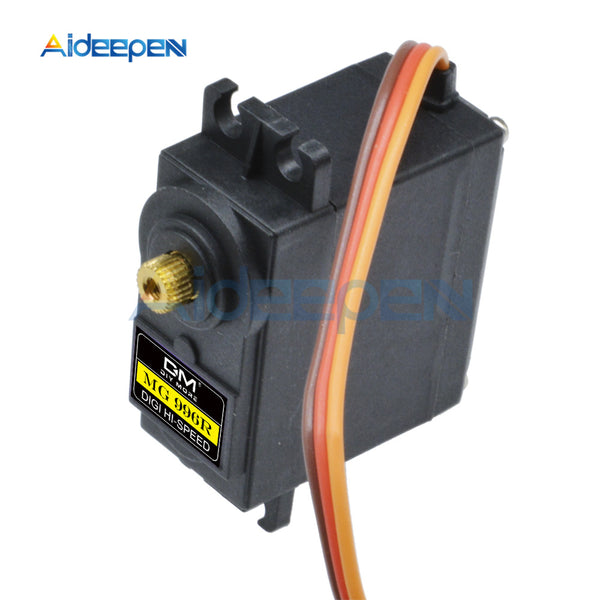

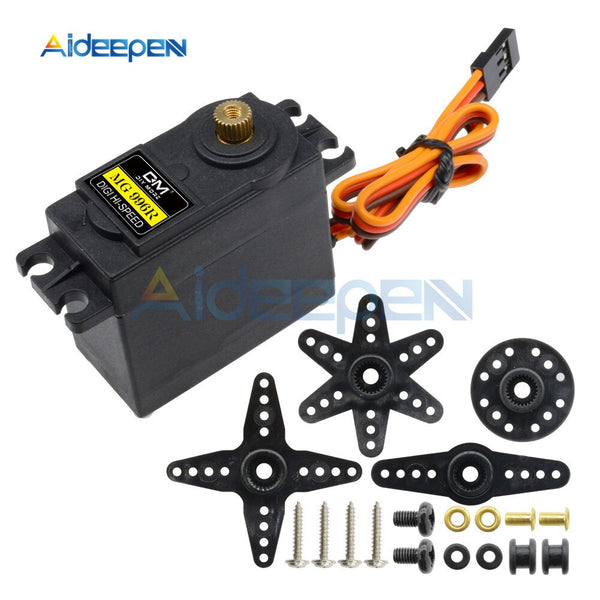

MG996:
Gear Type: All Metal Gears
Stall torque:12kg/cm(6V)
Power Supply: Through External Adapter
Operation Voltage : 4.8 - 7.2 V
Temperature range: 0 degree Celsius to 55 degree Celsius
Operating Speed: 0.17sec/60 degrees (4.8V no load)
Operating Speed: 0.13sec/60 degrees (6.0V no load)
Compliant with most standard receiver connector:Hitec, Sanwa, GWS etc
Stable and Shock Proof. - Metal Gear - Double Ball Bearing - Connector Wire
Length 300mm
Great for truck, Boat, Racing Car, Helicopter and Airplane
Specifications:
Connector wire length:300 mm
Package Dimension: 54 x 38 x 20 mm
Color: Black

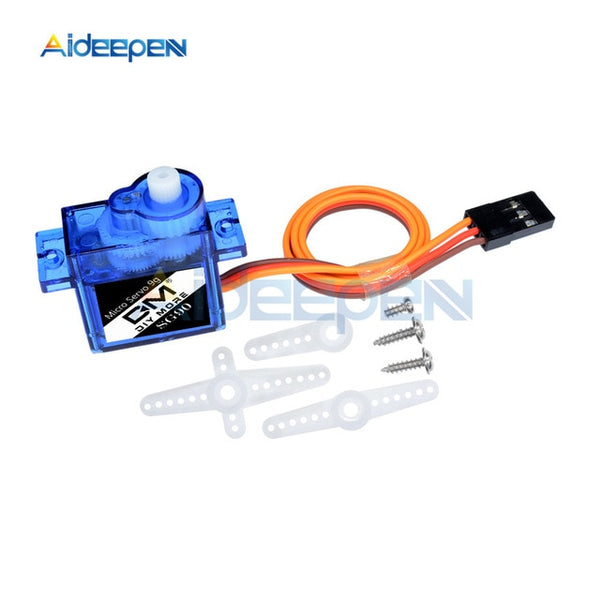

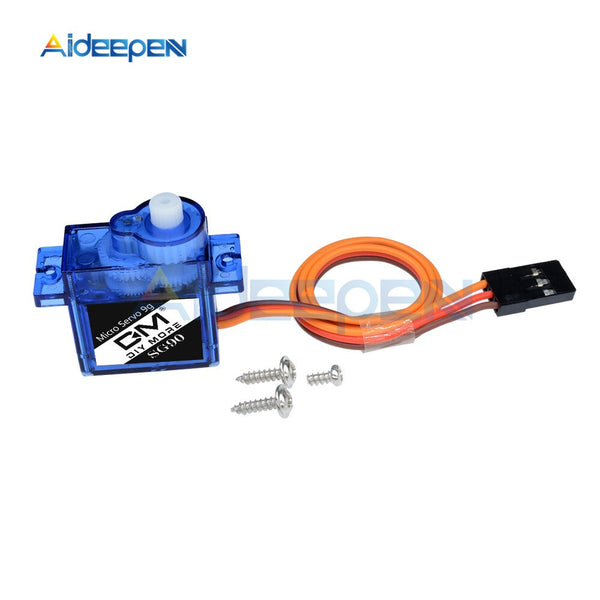

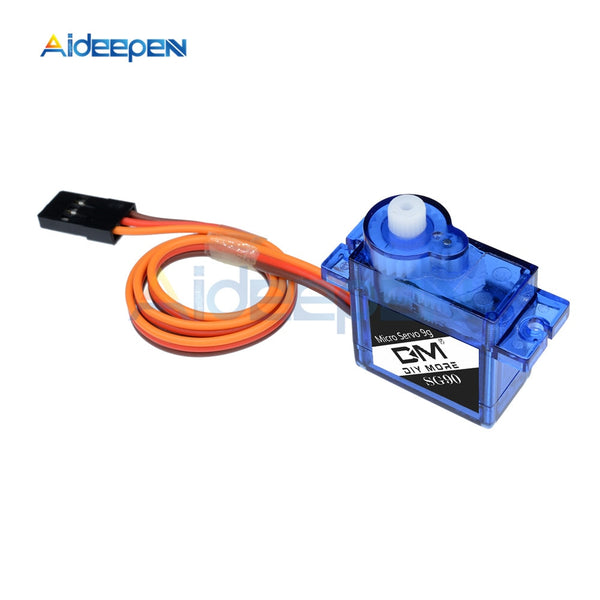

SG90:
Dimension: 22mm x 11.5mm x 22.5mm
Operating speed: 0.12second/ 60degree ( 4.8V no load)
Stall Torque (4.8V): 17.5oz /in (1kg/cm)
Temperature range: -30 to +60
Dead band width: 7usec
Operating voltage: 3.0V~7.2V
Fit for ALL kind of R/C Toys

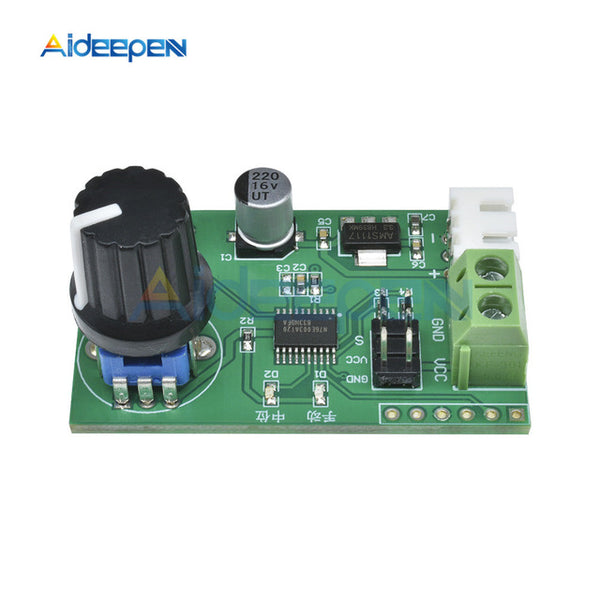

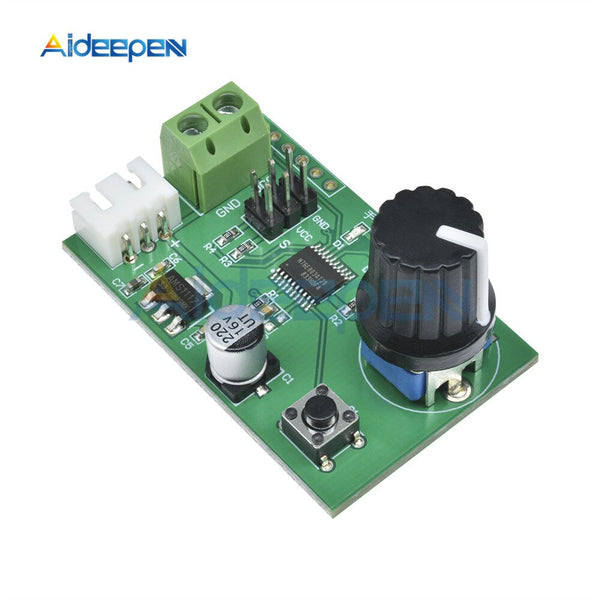

Board:
1. Onboard mature and stable 8-bit MCU for generating high-resolution PWM signals with precise control
2. Support manual mode and return mode, switch by button, with mode indicator
3. Support knob adjustment or serial command control in manual mode
4. Serial port command control can use the matching host computer or connect external MCU
5. Number of control channels: 2 channels (M0 and M1 servos). When using the knob adjustment and return function, the 2 servos are controlled at the same time. When using the serial command, the 2 servos can be controlled separately.
6. Servo control accuracy: 0.09 degrees (that is, PWM minimum change value 1us)
7. Support steering gear with control period of 20ms and pulse width between 0.5-2.5ms
8. Can directly use the 2S lithium battery charging head to debug and return to the steering gear
9. Power supply voltage range: 5-9V
10. Product size: 49.2*29.8mm
