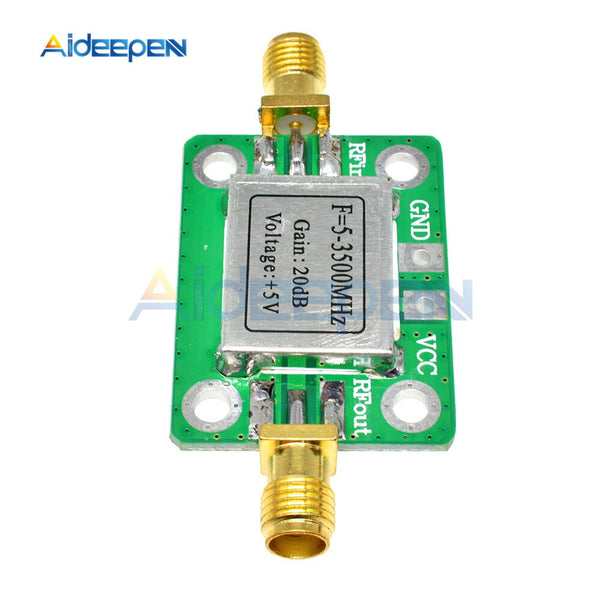

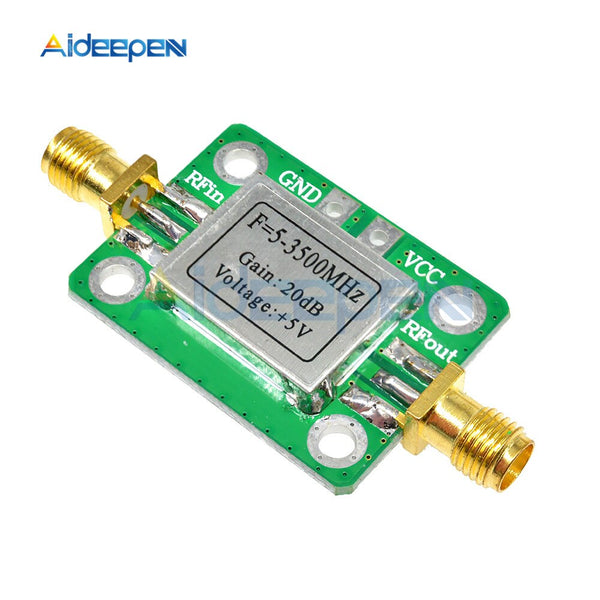

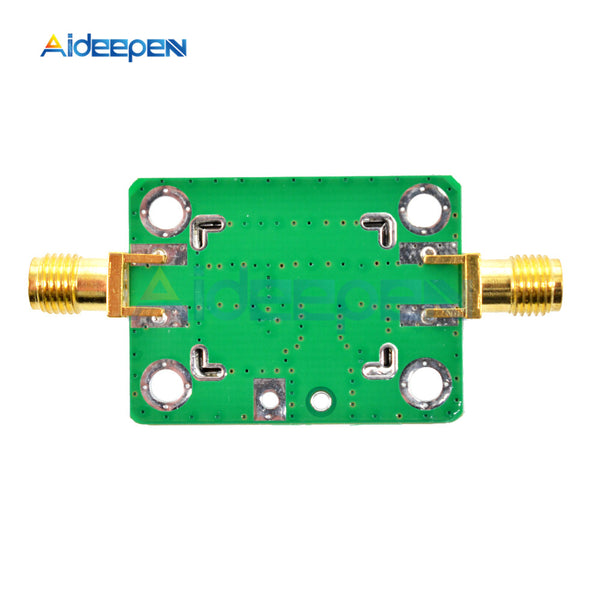

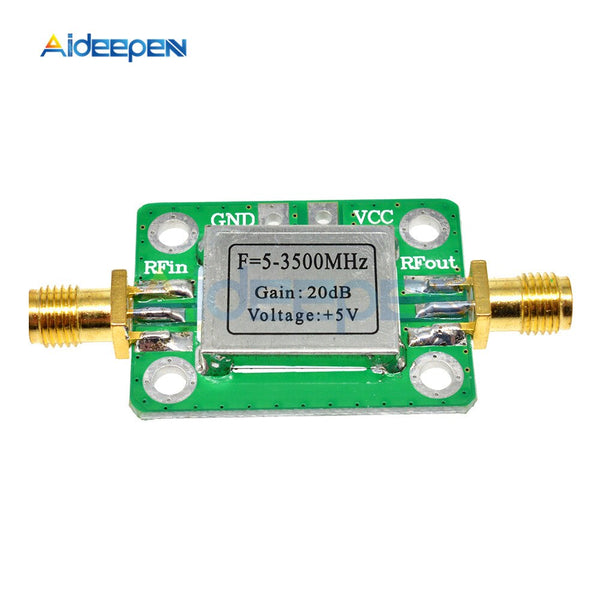

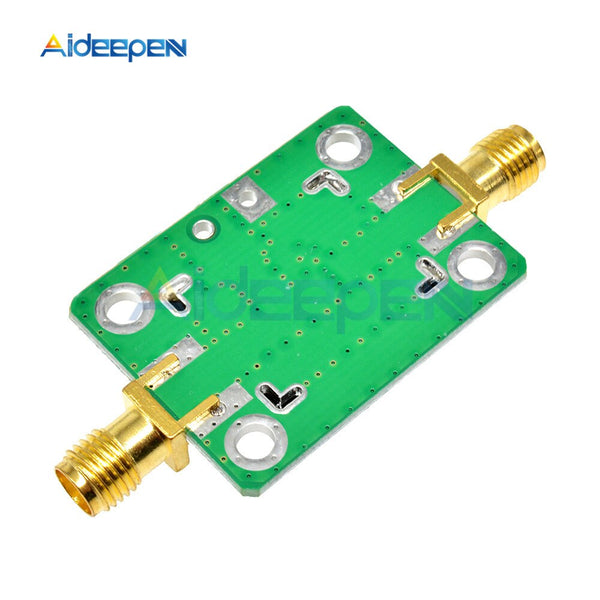

LNA 5-3500MHz RF Broadband Signal Amplifier High Gain 20dB Low Noise RF Amplifier Module With Shielding Shell
Description:
- This amplifier has a wide frequency range of 5-3500MHz, and large dynamic range +20dBm 1dBP.
- It has stable gain 20dB typical, and small noise figure 1.3dB typical.
- The broadband low noise RF amplifier is designed with shielding shell.
- It is especially suitable for all kinds of radio frequency receiving front-end circuit to extend communication distance.
- Widely used for short wave, FM radio, remote control receiver, cable TV signal amplifier, GPS satellite navigation, 2.4G bluetooth and WIFI receiver RF front-end that need low noise small signal RF to be amplified.
Specifications:
Working Frequency: 5-3500MHz
Gain: 20dB(typical)
Noise Figure: 1.3(typical)
Output Power: +20dBm (100mW) 1dB compression point
Working Current: 80mA (5V)
Power Supply Voltage: 3.3-6VDC
System Impedance: 50Ω
Connector: SMA
Test Data:
| F=5Mhz | gain=23dB |
| F=30Mhz | gain=23dB |
| F=100Mhz | gain=23dB |
| F=150Mhz | gain=23dB |
| F=420Mhz | gain=22dB |
| F=1500Mhz | gain=20dB |
| F=3000Mhz | gain=18.7dB |
| F=3500Mhz | gain=17.6dB |
Package Included:
1 x LNA 5-3500MHz RF Broadband Signal Amplifier
