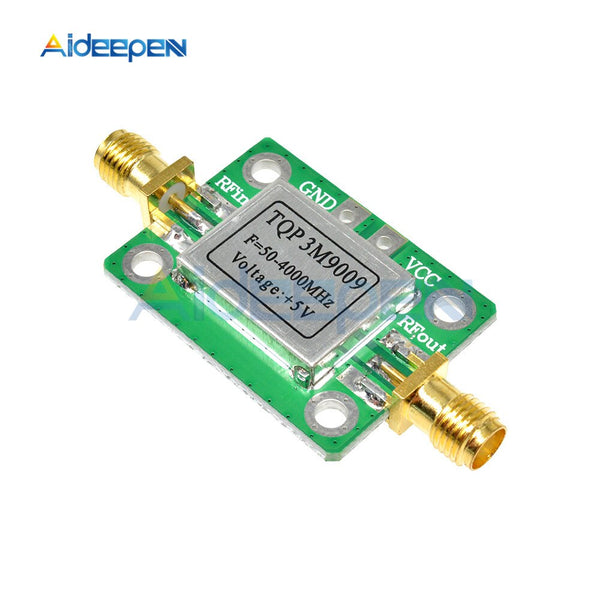

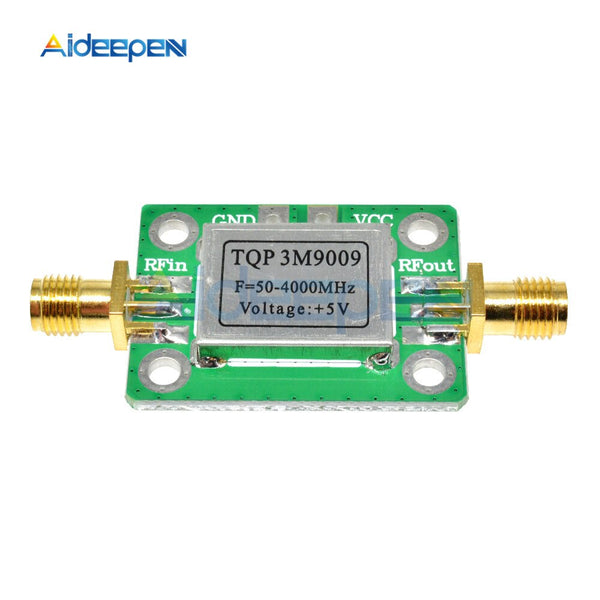

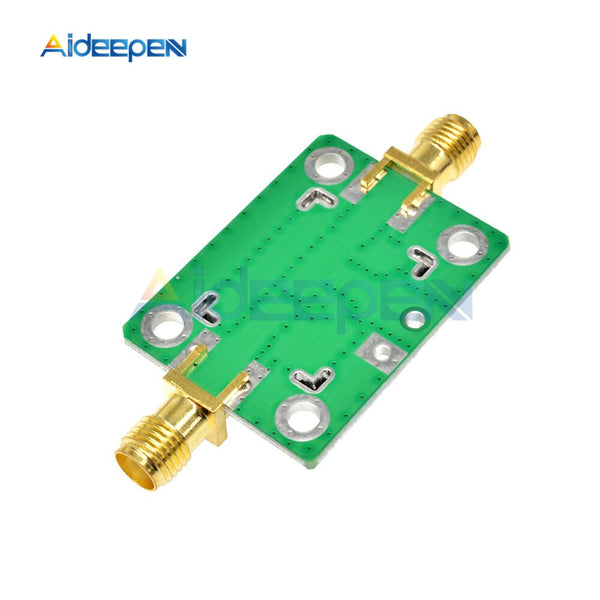

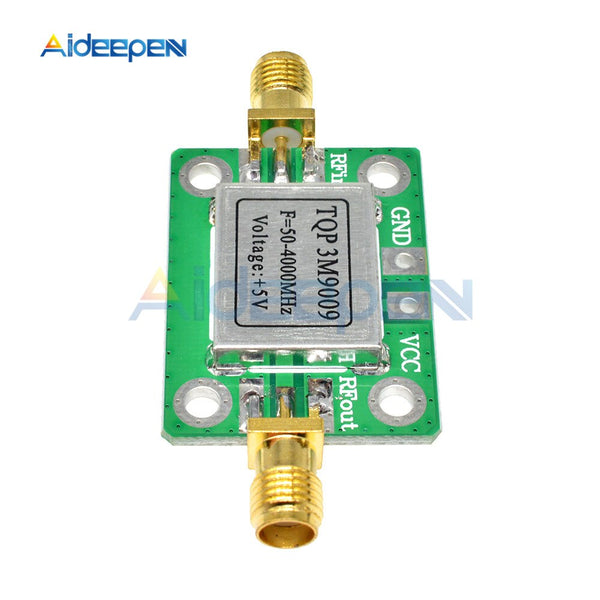

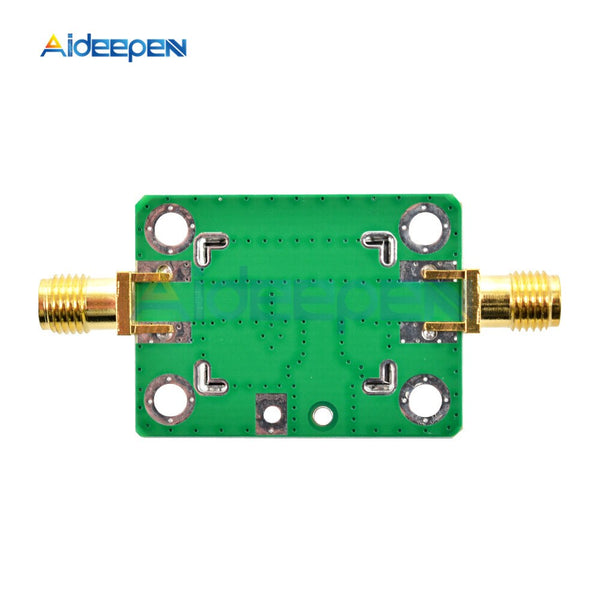

50-4000MHz Tqp3M9009 High Linearity Rf Broadband Low Noise Amplifier Module LNA Board with Shielded
Description:
It's low in properties can be a perfect match various circuits as ideal amplifier buffer amplifiers.
This product with wide frequency range, high gain, low noise figure.
This product can be applied to various rf receive front-end and increases communication distance.
Used for Short wave, FM radio, remote control receiver, such as cable TV signal amplifier need low noise rf signal amplification.
The low noise amplifier module has a higher gain and provides very low noise over a wide frequency range. This provides communication between the receiver and the transmitter. The amplifier operates from a single +5V supply. It has very good stability, and has a wide dynamic range and a wide operating frequency range. It is suitable for fixed gain amplification of various RF signals.
Specifications:
Colour: green
Size: 20*35mm
Operating frequency: 50-4000MHz
Amplification gain: 21.8dB (typical)
Noise figure: 1.3dB (typical)
Maximum power: +22dBm (150mW) @1dB compression point
Working current: 125mA (5V)
Power supply voltage: 5VDC
System impedance: 50 ohms
Package Included:
1 x 50-4000MHz Tqp3M9009 High Linearity Rf Broadband Low Noise Amplifier Module
