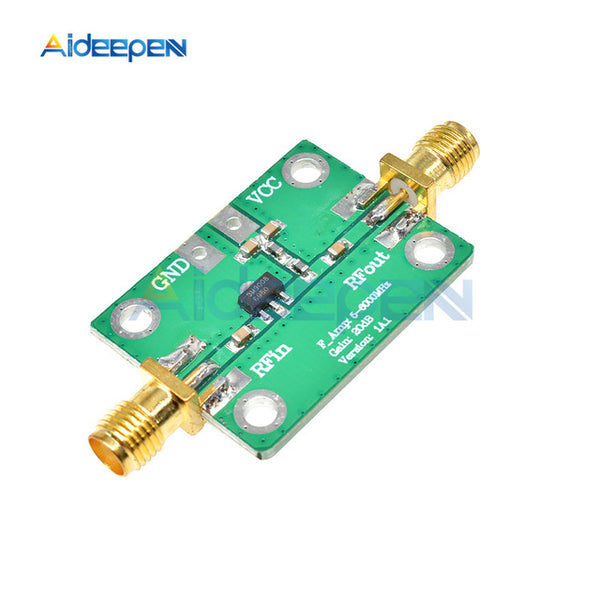

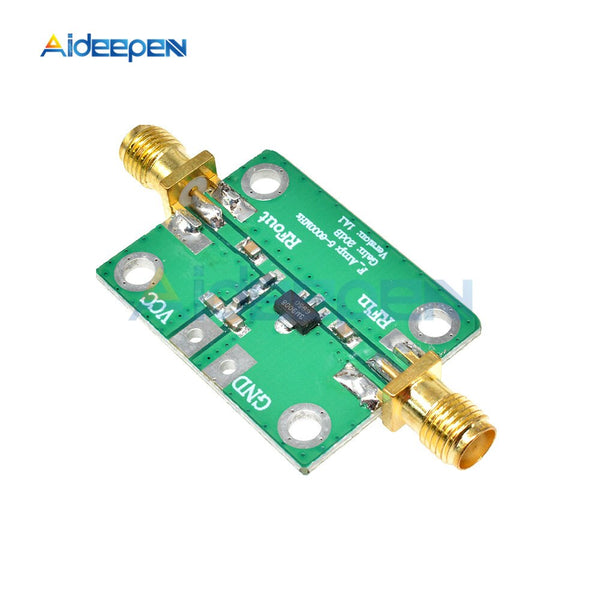

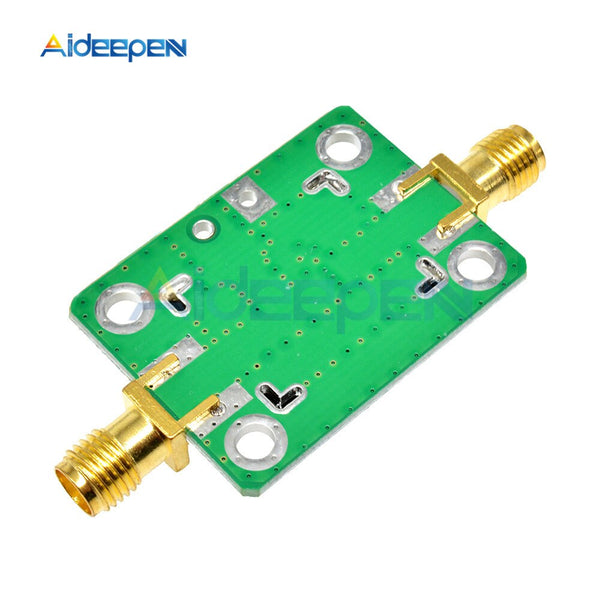

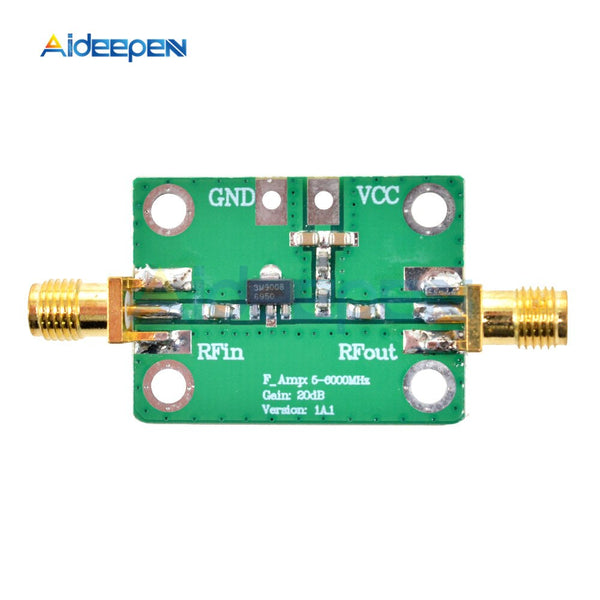

5 3500MHz RF Broadband Signal Amplifier High Gain 20dB Low Noise RF Amplifier Module LNA Board With Shielding Shell

14:350686

Sale price $6.99 Regular price $10.48

Tax included.
不锈钢计时器
LNA 5-3500MHz RF Broadband Signal Amplifier High Gain 20dB Low Noise RF Amplifier Module With Shielding Shell

Description:

  • This amplifier has a wide frequency range of 5-3500MHz, and large dynamic range +20dBm 1dBP.
  • It has stable gain 20dB typical, and small noise figure 1.3dB typical.

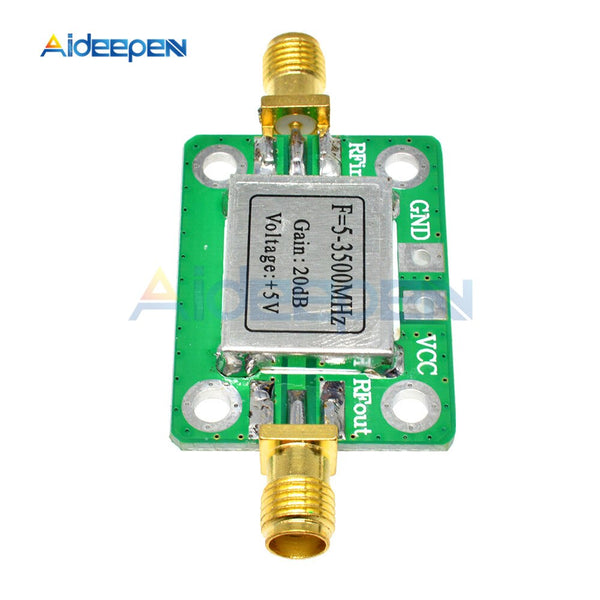

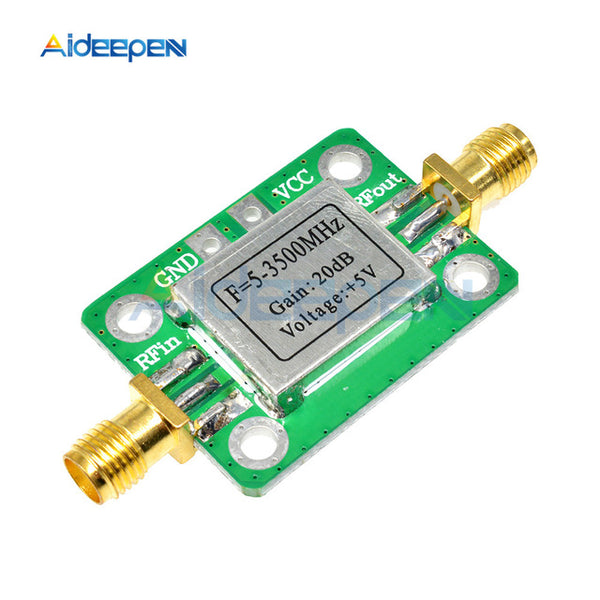

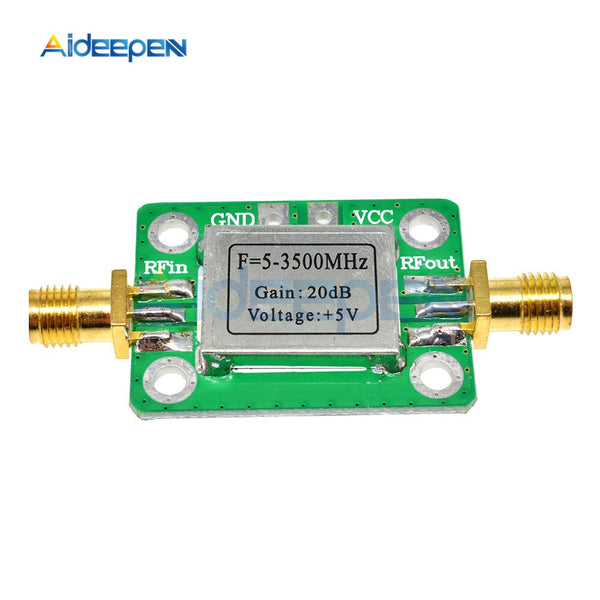

  • The broadband low noise RF amplifier is designed with shielding shell.
  • It is especially suitable for all kinds of radio frequency receiving front-end circuit to extend communication distance.
  • Widely used for short wave, FM radio, remote control receiver, cable TV signal amplifier, GPS satellite navigation, 2.4G bluetooth and WIFI receiver RF front-end that need low noise small signal RF to be amplified.

Specifications:

Working Frequency: 5-3500MHz

Gain: 20dB(typical)

Noise Figure: 1.3(typical)

Output Power: +20dBm (100mW) 1dB compression point

Working Current: 80mA (5V)

Power Supply Voltage: 3.3-6VDC

System Impedance: 50Ω

Connector: SMA

Test Data:

F=5Mhz

gain=23dB

F=30Mhz

gain=23dB

F=100Mhz

gain=23dB

F=150Mhz

gain=23dB

F=420Mhz

gain=22dB

F=1500Mhz

gain=20dB

F=3000Mhz

gain=18.7dB

F=3500Mhz

gain=17.6dB

Package Included:

1 x LNA 5-3500MHz RF Broadband Signal Amplifier
