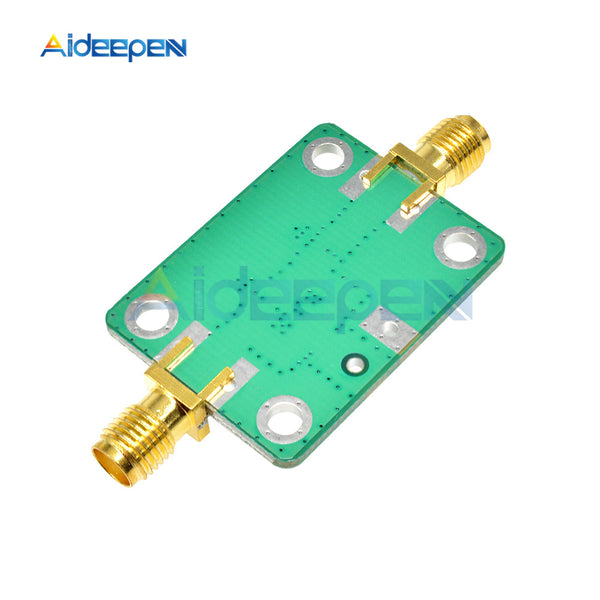

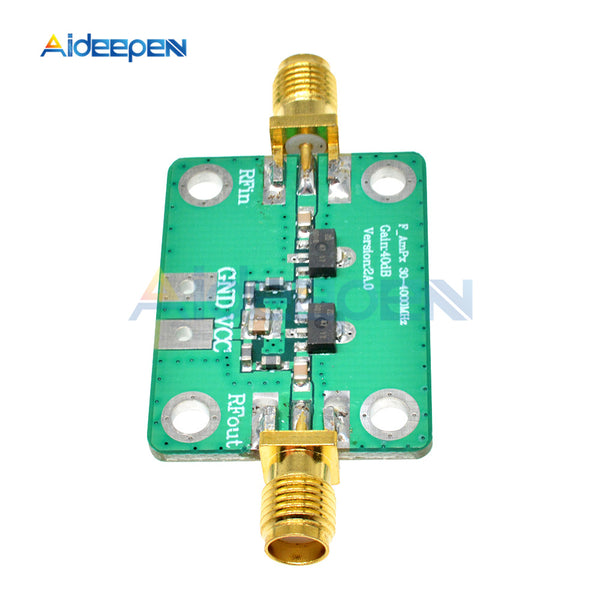

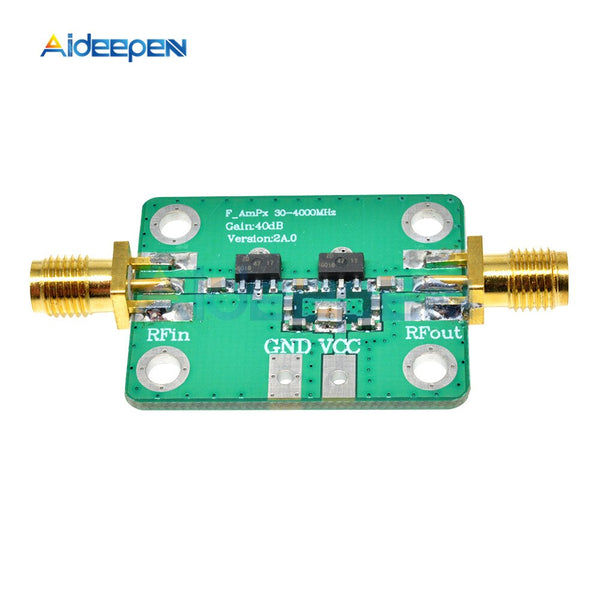

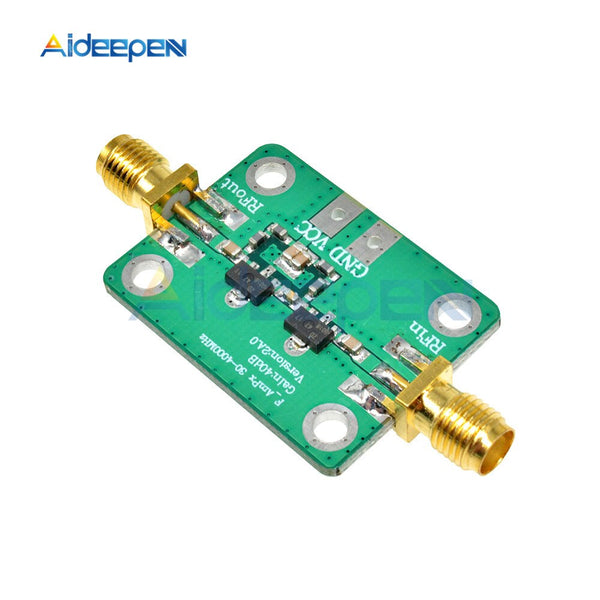

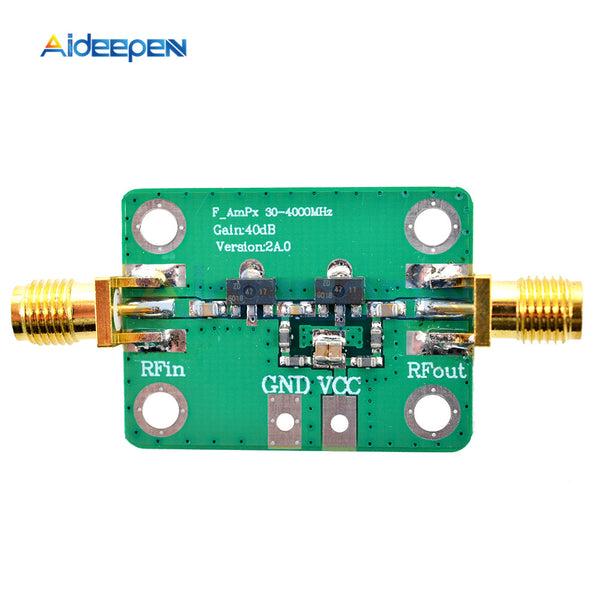

30-4000MHz 40dB Gain RF Broadband Amplifier Module for FM HF VHF/UHF 50Ω ubs for RF signals Fixed Gain Amplification
Description:
The amplifier is 30-4000MHz (40dB) amplifier, with the characteristic of a large dynamic range.
Suitable for the fixed gain amplification of RF signals.
This amplifier has a wide frequency range, FM HF VHF/UHF.
Widely used in shortwave, FM radio, remote control receiver, cable TV signal amplifier, GPS satellite navigation.
This RF broadband amplifier module gain stability, is 40dB.
Specifications:
Operating Frequency: 30-4000MHz
Amplifier Gain: 40dB
Maximum output power: + 20dBm (100mW) @ 1dB compression point
Operating Current: 135mA (5V)
Supply voltage: 5VDC
System Impedance: 50 Ω
Weight: 8g
Package Included:
1 x 30-4000MHz 40dB Gain RF Broadband Amplifier Module
