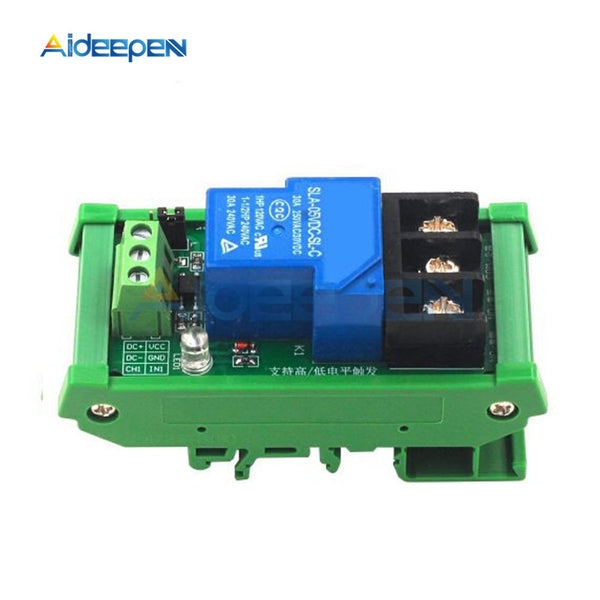

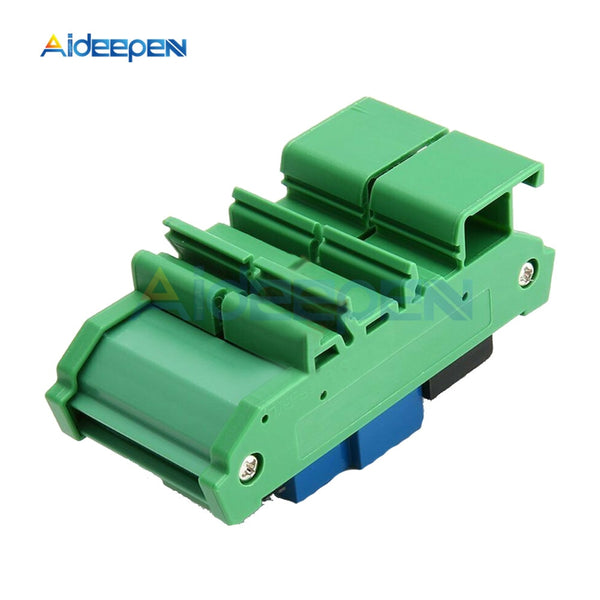

1 Way DC 5V 12V 24V Relay Module Optocoupler High/Low Level Trigger Relay Module With Guide Rail For Smart Home PLC Automated
Description:
Using double-sided FR-4PCB board
Using high-power relay, control the load up to 30A
With each optocoupler isolation, anti-interference ability
Black 9500 terminals, more convenient for high-current wiring
Each circuit has a relay on LED indication
The modules comply with international safety standards with isolation slots in the control and load areas
Applications:
PLC automation equipment control, industrial system control, internet of things control, home intelligent control, electronic hobbyist development experiment, all kinds of circuit modification
Supply voltage: 5V / 12V / 24V
Quiescent current: 5mA
Maximum operating current: 190mA / 80mA / 50mA
Trigger mode: low trigger, high trigger
Load voltage: DC 30V or AC 250V
Load current: 30A
Relay life: more than 100,000 times
Trigger voltage range:
5V low trigger module: 0-2VDC relay on (ON), 3-5VDC relay off (OFF)
12V low trigger module: 0-5VDC relay on (ON), 6-12VDC relay off (OFF)
24V low trigger module: 0-12VDC relay is ON, 13-24VDC relay is OFF.
5V high trigger module, 3.3-5VDC relay (ON), 0-2.5VDC relay off (OFF)
12V high trigger module: 6-12VDC relay (ON), 0-5.5VDC relay off (OFF)
24V high trigger module: 12-24VDC relay (ON), 0-8.5VDC relay off (OFF)
Package Include:
1 x High and Low Level Trigger Relay
