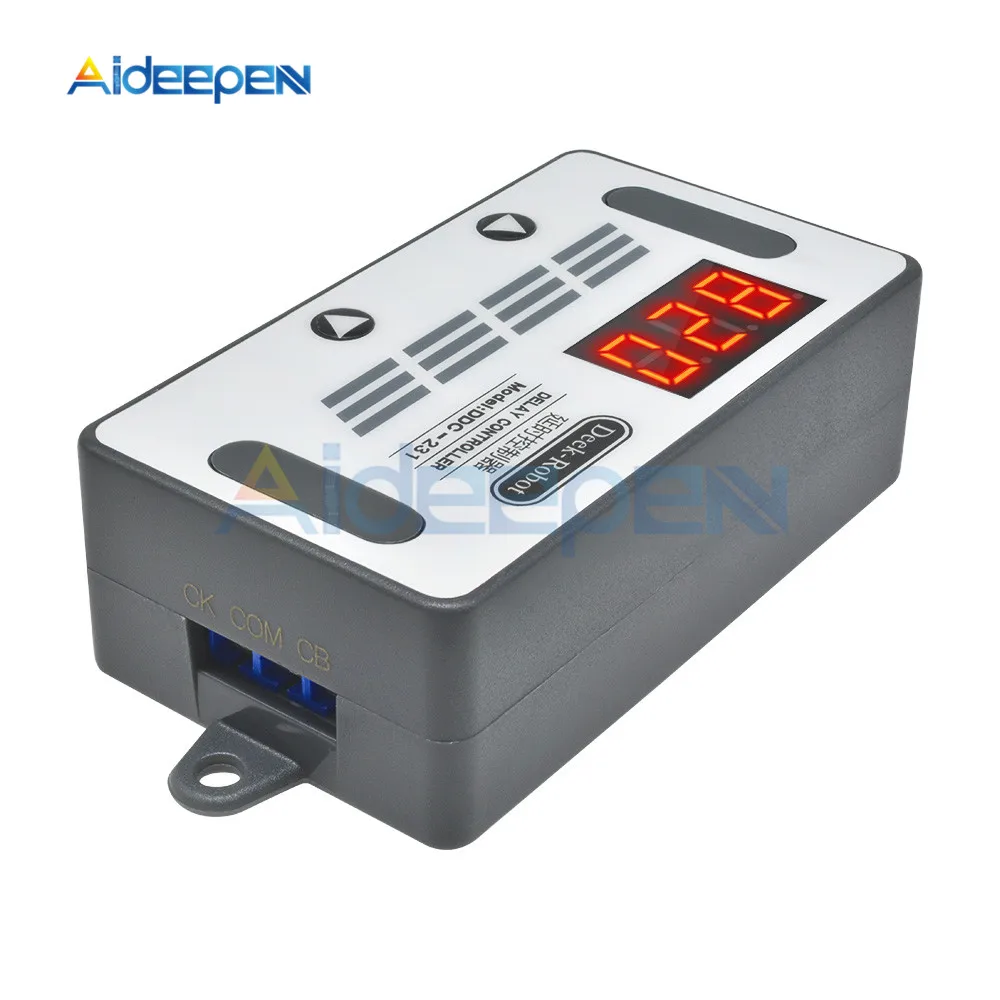

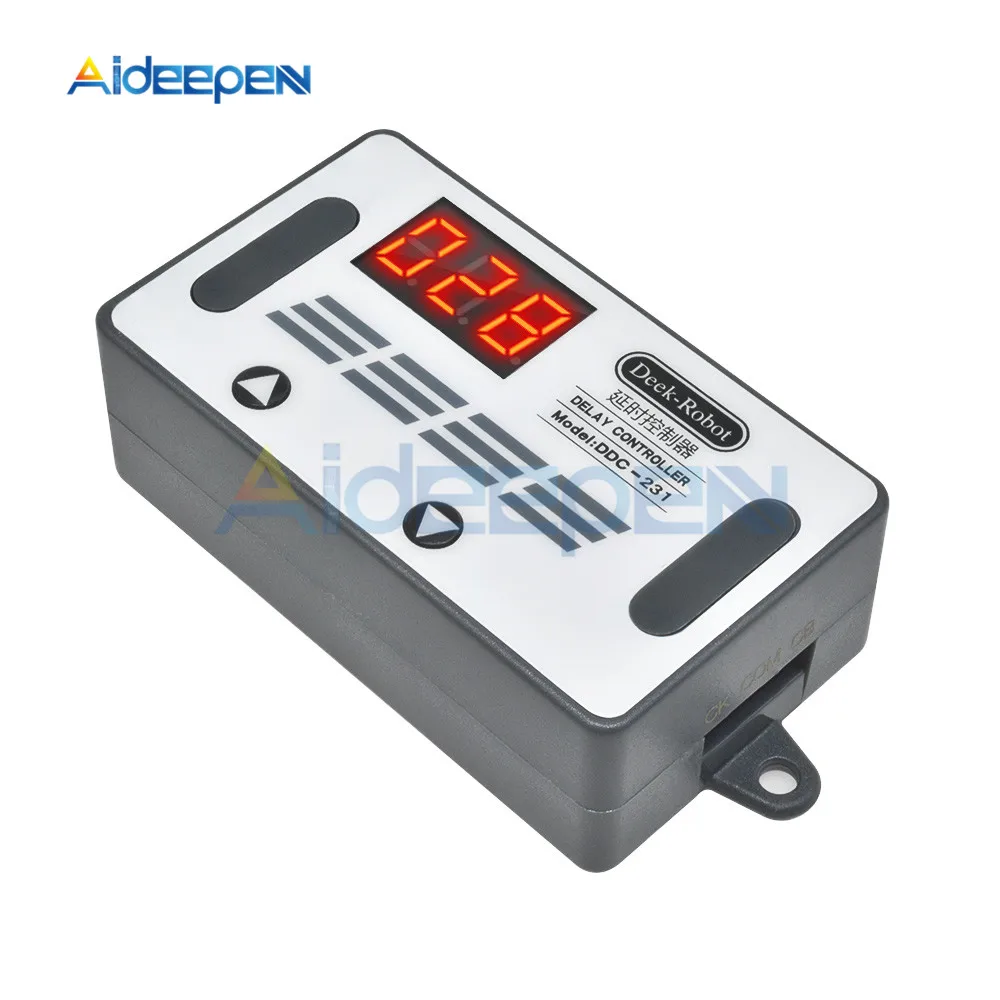

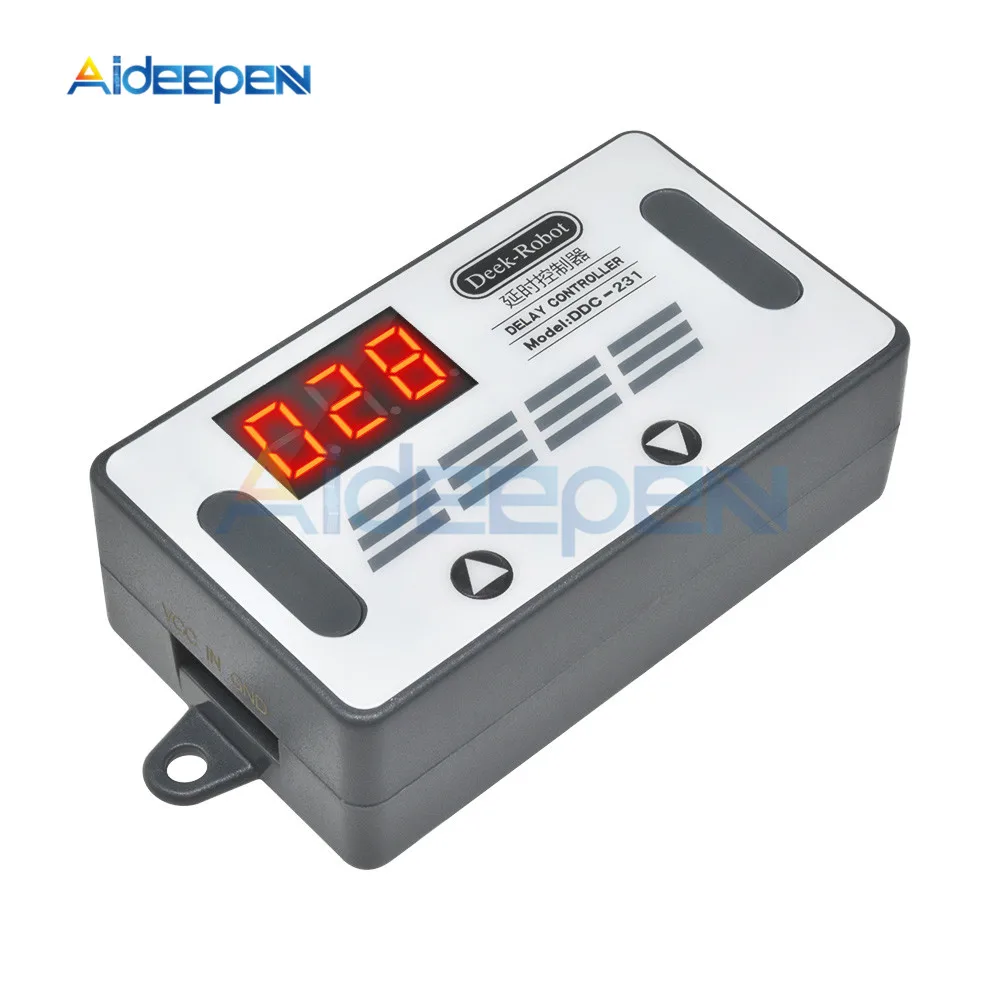

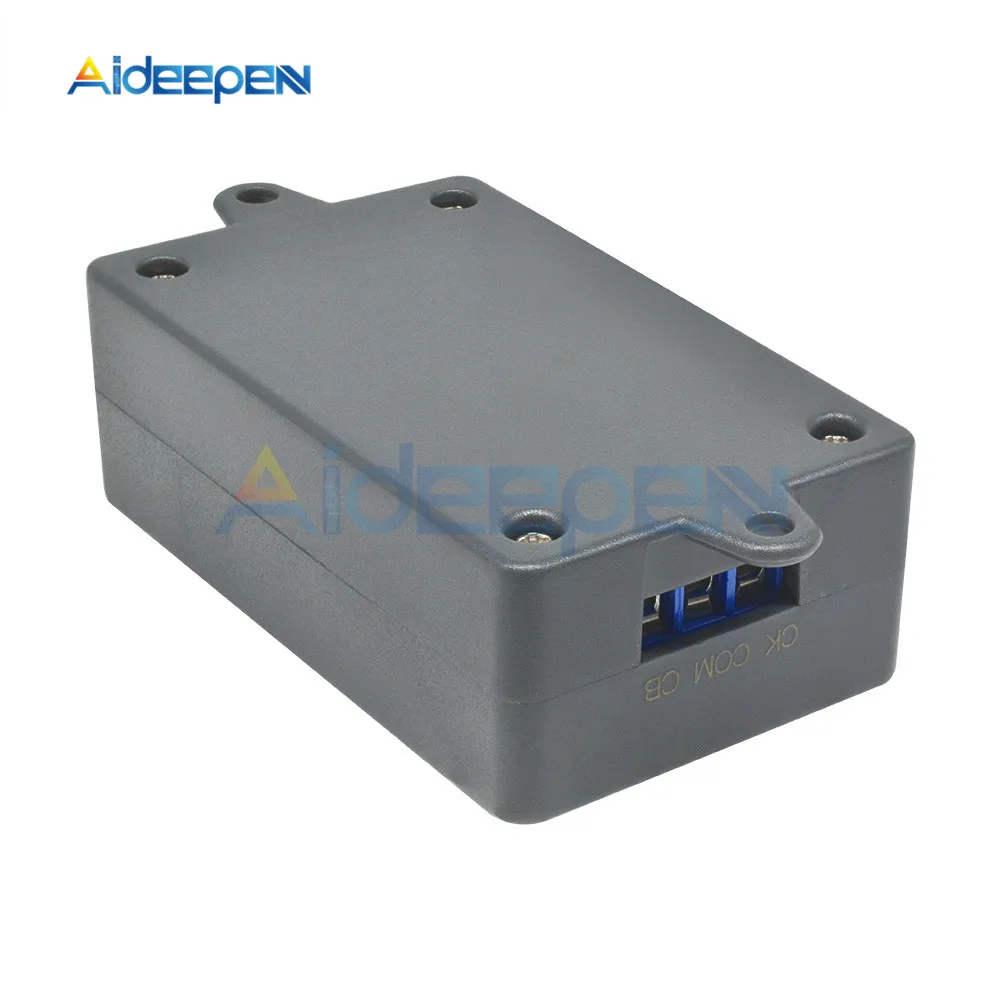

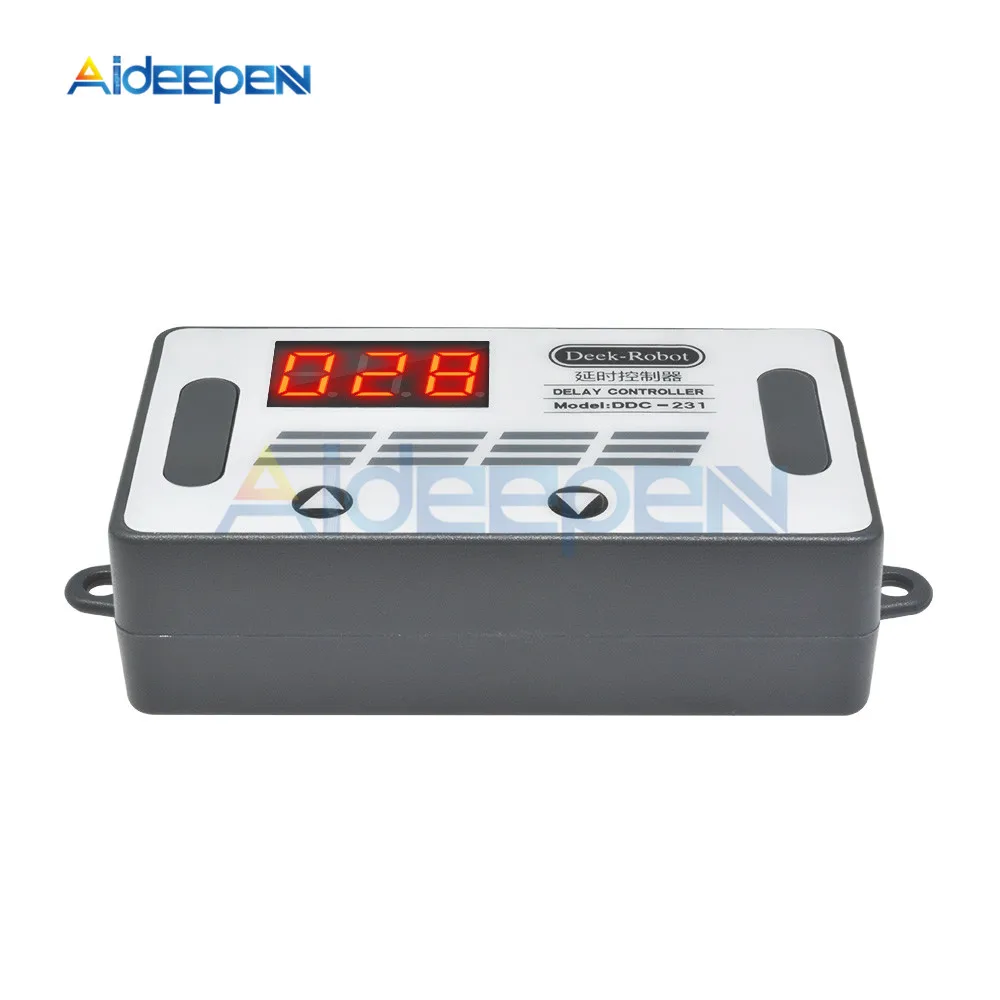

DC 12V Time Delay Relay DDC-231 Time Relay Programmable Timing Relay Control Switch PNP sensor Trigger PLC Automation Car Buzzer
Description:
Working voltage: DC12V (normal working voltage DC10V-16V)
Signal source: DC4V~20V (usual power supply positive trigger, button, PNP sensor, PLC signal, etc.)
Output capability: It can control devices within 30v5A or within 220v5A
Quiescent current: 20mA, working current: 50mA
Service life: more than 100,000 times;
Working temperature: -40~85 °C;
Net weight: about 26g
Size: 64.2mm*34.8mm*18.5mm
Features:
Voltage input anti-reverse circuit, worry-free wiring. Signal input optocoupler isolation, strong anti-interference ability. Set the parameter to power off permanent memory. Powerful flash MCU online programming function, according to user needs can contact manufacturers to customize the required functions
Module and device power supply wiring diagram
Package Included:
1 x DC 12V Time Delay Relay DDC-231
