Description:
Model: P6100
Bandwidth: DC- 100MHz
attenuation ration: 1: 10
Input resistance: 1 M: 10 M
Input Capacity: 1X: 85pF-120pF 10X: 18.5pF-22.5pF
Compensation range: 10pF-30pF
Rise time: <3.5ns
Operating voltage: 1X: <+ 200Vdc ACPeak 10X: <+ 600Vdc ACPeak
cable length: 120 cm
opertating temperature: -10? ~ + 50? br /> nonopertating-20? ~ + 75? br /> Humidity :? 5% (relative humidity)
Technical specifications:
Cable length: 120 cm
Color: Gray + Black
Package Included:

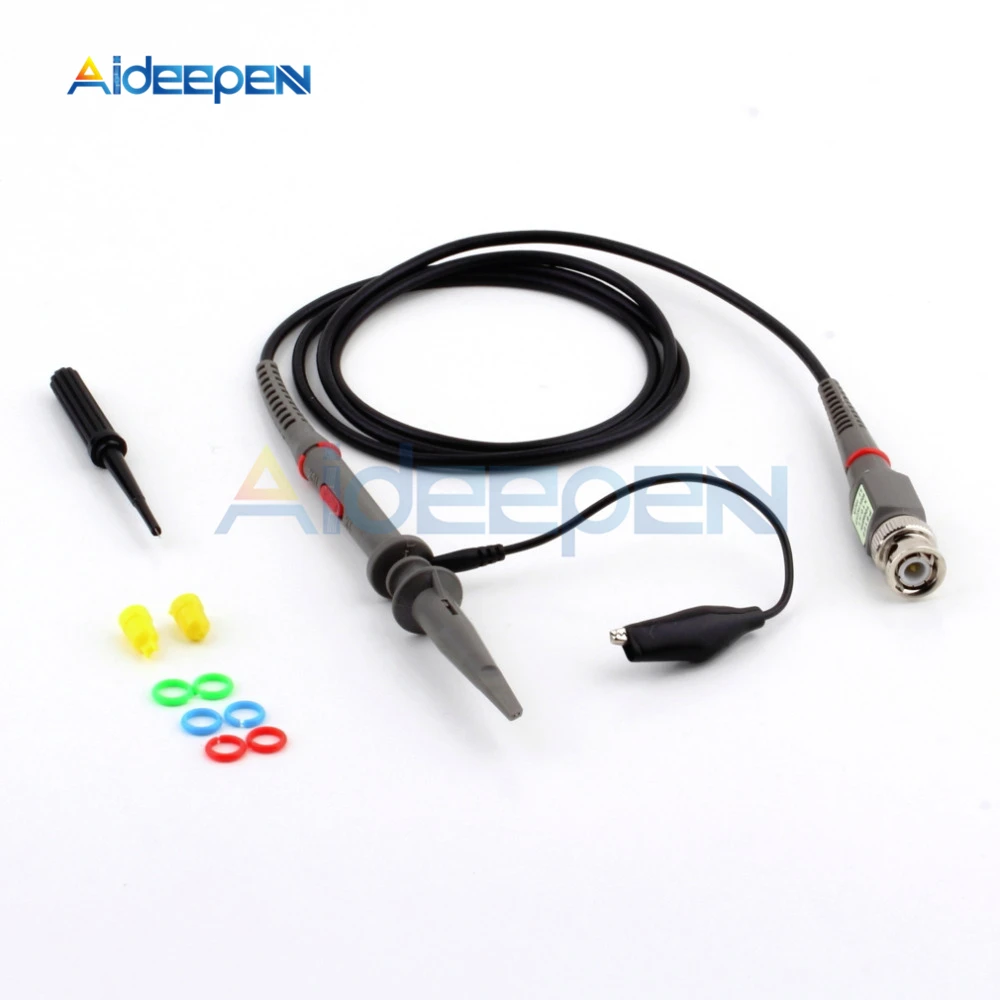

1 x set of P6100 Oscilloscope Probe
