Description:

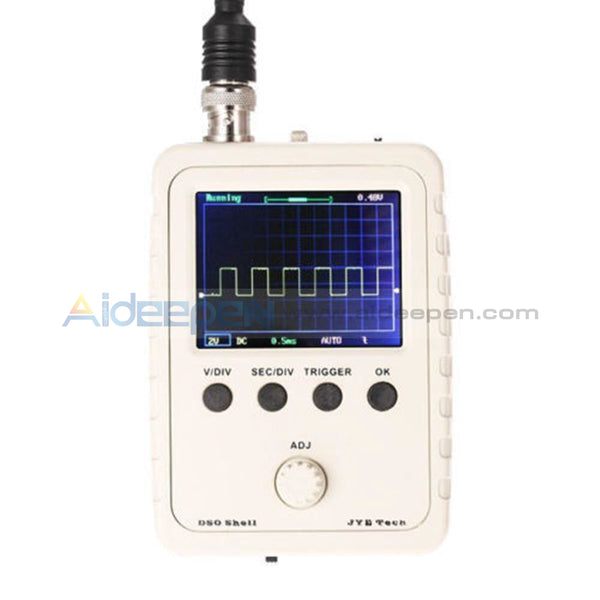

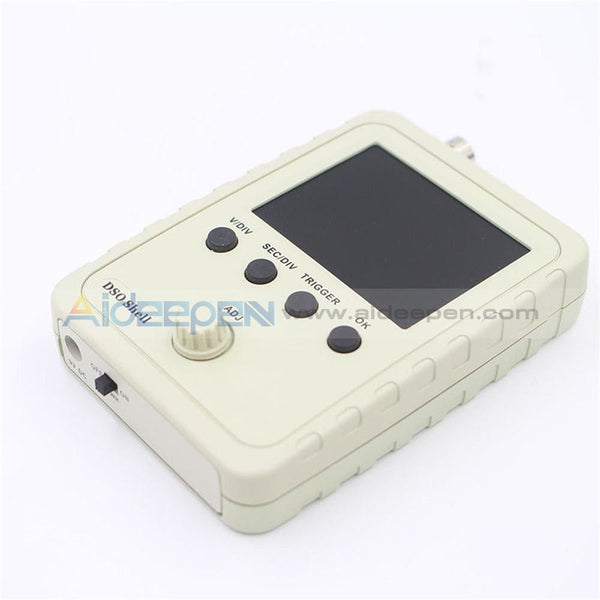

This digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen and protective case. It's easy and reliable for circuit operation. It can display waveform parameters, such as frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Features:
Adopt ARM Cortex-M3 processor (STM32F103C8), and include a 2.4-inch color TFT display screen.
Used for secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
With Auto/Normal/Single trigger modes, easy to capture the moment waveform.
Available rising or falling edge trigger.
Observable previous waveform before trigger(negative delay).
Can freeze waveform display at any time(HOLD function).

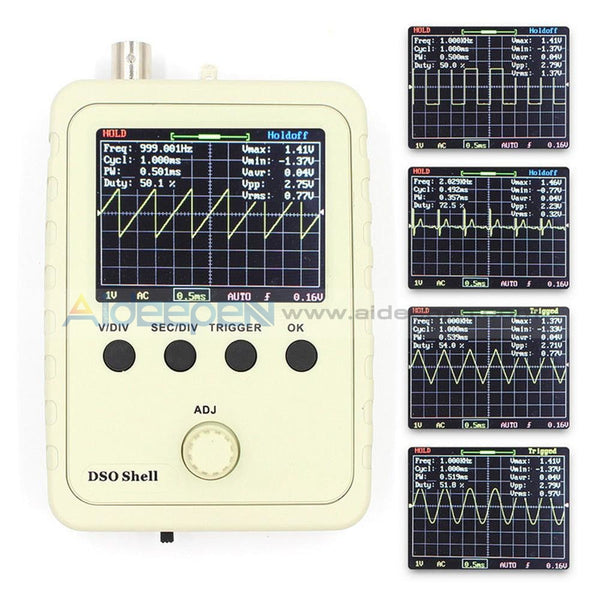

With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Waveform storage function: will not lose the waveform after power off.
Short-circuit and open-circuit detection: can help the user find out the soldering error.
TFT controller recognition function.
The SMD has been soldered, more suitable for electronic beginner.
Specifications:
Maximum Real-time Sampling Rate: 1MSa/s
Analog Bandwidth: 0-200KHz
Sensitivity Range: 5mV/div-20mV/idv
Maximum Input Voltage: 50Vpk (1X probe)
Input Impedance: 1M ohms/20pF
Accuracy: 12 Bits
Record Length: 1024 points
Coupling Modes: DC / AC / GND
Time Base Range: 500s/Div - 10us / Div
Trigger Modes: Auto, Normal, and Single
Trigger Position: Center of Buffer
Supply Voltage: DC 9V(8-10V)
Current Consumption:~120mA @ 9V
Main Board Size: 94 * 65mm / 3.7 * 2.56in
Analog Board Size: 65 * 47mm / 2.56 * 1.85in
Screen Size: 52 * 40mm / 2 * 1.57in
Package Size: 14.5 * 10 * 3.7cm / 5.7 * 3.94 * 1.45in
Package Weight: 179g / 6.33oz
Package Included:

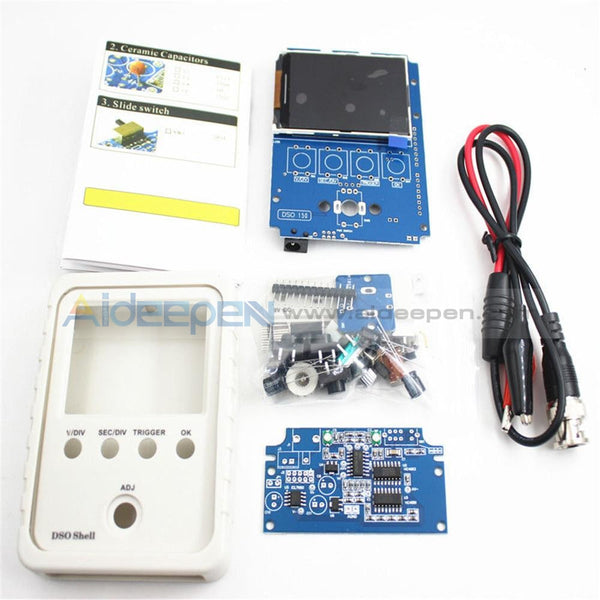

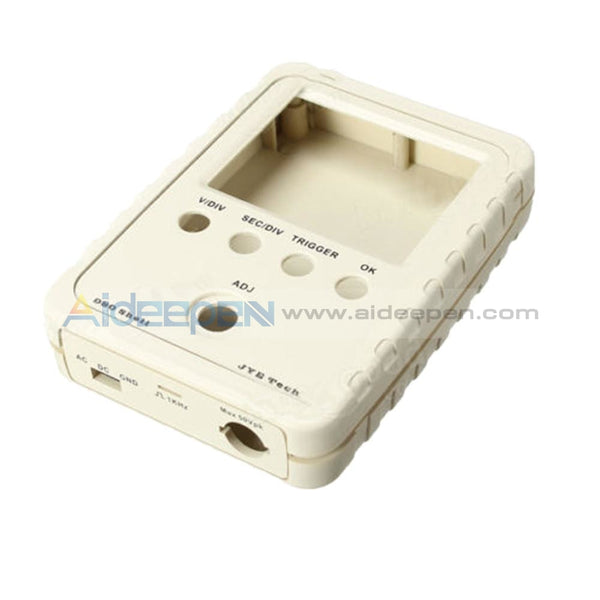

1*Welded Digital Oscilloscope or Un-soldered DIY Kit with Case (Optional)
