0.96" 0.96 Inch I2C IIC Serial 128X64 128*64 Blue OLED LCD LED Display Module SSD1306 12864 SPI Serial Module 4Pin for Arduino

030513LA

Sale price $5.99 Regular price $8.99

Tax included.

Description:

128*64 LED display module for Arduino, supports many control chip.
Fully compatible with FOR Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC

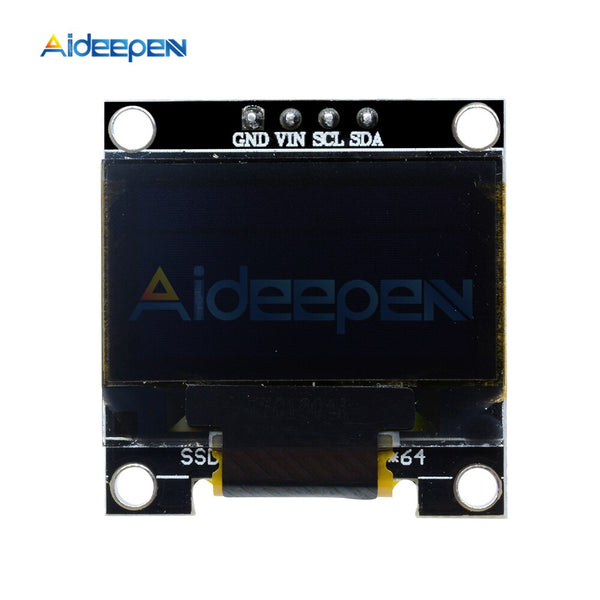

Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V - 5V DC
Working Temperature: -30 ° - 70 °
Character Colors: Blue(as pictures show)
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
Driver IC: SSD1306
Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness
Package Included:
1PC*128x64 Blue LED display module for Arduino
