FHT20 Digital Temperature Humidity Sensor Module SHT20 Chip I2C IIC High Precision Sensor Probe DC3.3V 5.5V Home Diy

14:29

Sale price $2.99 Regular price $4.49

Tax included.
TIM图片20190629173127TIM图片20190629173133TIM图片20190629173100

Description:

The FHT20 digital temperature and humidity sensor uses a built-in high-precision sensor. It uses professional SHT20 temperature and humidity chip to ensure high reliability and excellent long-term stability, low cost, relative humidity and temperature measurement, ultra-fast response, strong anti-interference ability, long signal transmission distance, digital Signal output, precise calibration. Can be used in HVAC, dehumidifiers, testing and testing equipment, consumer goods, automobiles, automatic control, data loggers, weather stations, home appliances, humidity regulators, medical, and other related humidity detection controls.

Parameters:

Relative humidity:Resolution: 12Bit
Repeatability: ±0.1%RH
Accuracy: 25 ° C ± 3% RH
Interchangeability: fully interchangeable
Response time: 1/e (63%) 25 ° C 8s
1m/s air 8s
Hysteresis: <±0.1%RH
Long-term stability: <±0.25% RH/yr

Temperature:

Resolution: 14Bit
Repeatability: ±0.1 °C
Accuracy: 25 ° C ± 0.3 ° C
Response time: 1/e (63%) 10S

Electrical characteristics:

Power supply: DC 3.3 ~ 5.5V
Supply current: measuring 0.3mA standby 60μA
Sampling period: times greater than 2 seconds

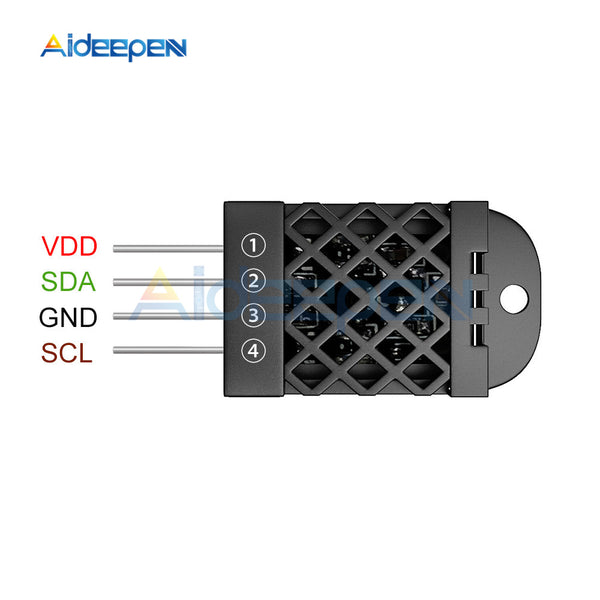

Pin Description:

VDD power supply 3.3 ~ 5.5V DC
SDA bidirectional data line
GND ground, negative power supply
SCL clock line

Package Included:

1 x FHT20 Digital Temperature Humidity Sensor Module SHT20 Chip I2C IIC High Precision Sensor Probe DC3.3V-5.5V Home Diy
