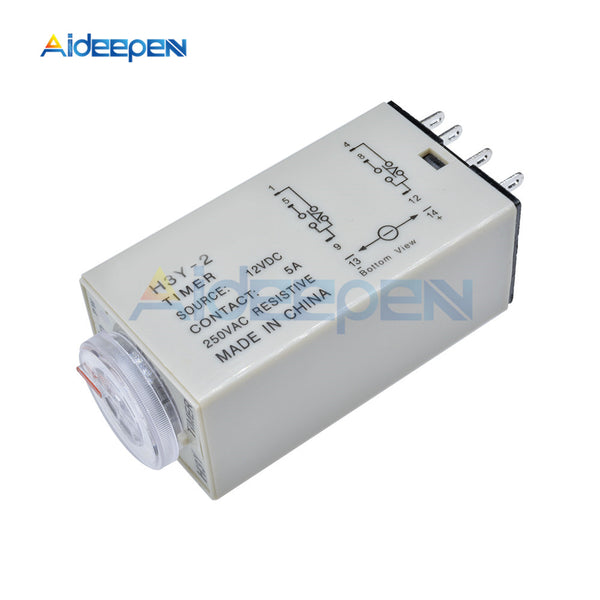

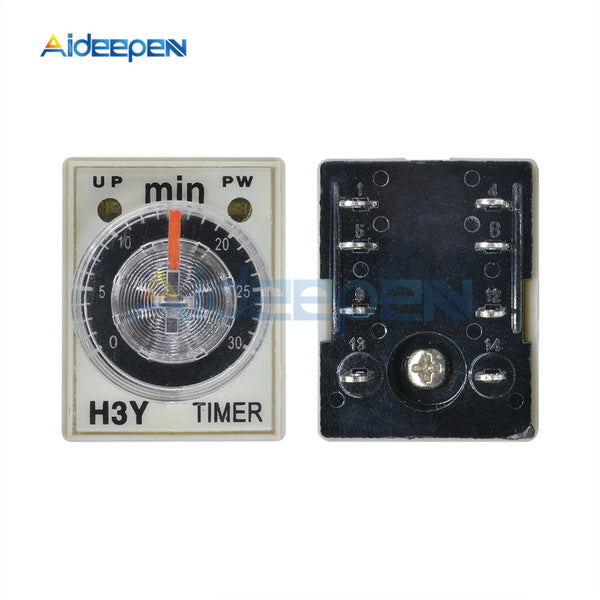

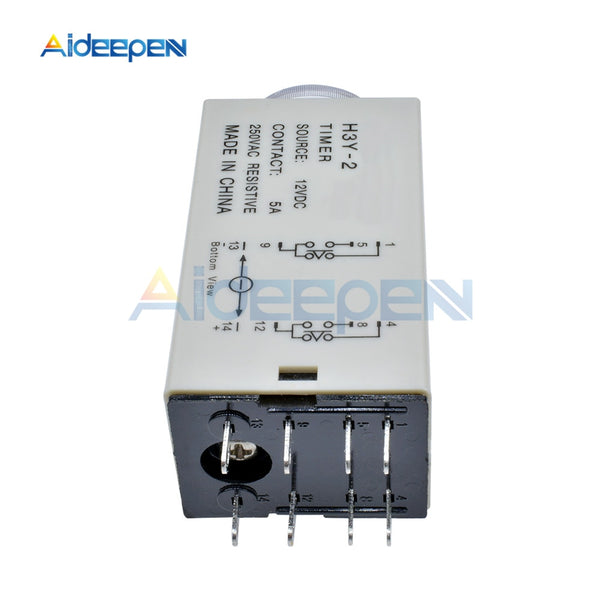

H3Y-2 Timer Relay DC 12V 0-30 Second 0-30 Minute Delay Timer 12VDC Time Relay with Base Socket
Note: If you need other specification such as 60s,60m,you can remark it on your order.
Description:
Item :Time Delay Relay, Solid-State Timer H3Y-2-30M, 1.0~30M, On-Delay, DPDT, 8Pins 110V AC
Contact Form :DPDT
Pins :8
Dielectric Strength :2000V 50/60Hz Min(Not include DC12V) between current-carrying and exposed non-current-carrying metal parts and between contact and control circuit
Dielectric Strength :1500V 50/60Hz Min(Not include DC12V) between control output terminals and operating circuit
Dielectric Strength :1000V 50/60Hz Min between contacts
Function: On-Delay
Contact Amp Rating (Resistive) :5
Coil Volts :12V DC
Rated Time Range : 1.0~ 30Min.
Mounting :Surface/Din-Track Mounting(with socket)

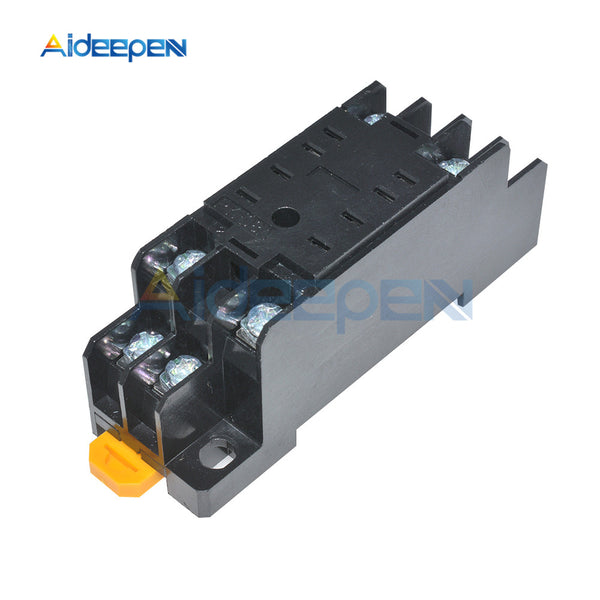

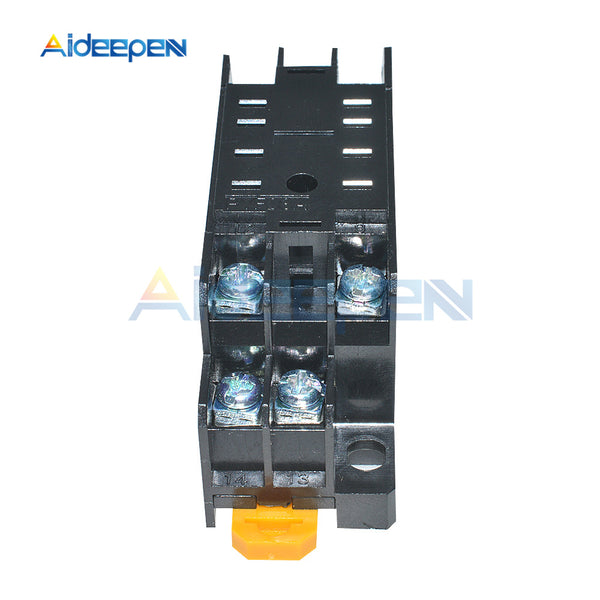

Matched Relay Socket :PYF08A, PYF08A-E, PYF08A-N, SYF08A
Package Included:
1 x H3Y-2 Delay Timer Time Relay
